Remote Control Fireplace Basic System ON/OFF For Standard Millivolt System

• Battery Powered Transmitter and Receiver , Easy access to the receiver's battery     compartment uses a sliding battery cover

• Compatible with some common models Skytech :1001-MRCK(SR-1001) -1001t -1001TH-3002-1420-SKY-3003P-TX/SKY-3003-TX-Skytech Stat IV Heat-N-Glo-TM/R2 -TS /R-2-TS-3- Sky-Ws-TM-3- 8001-TX -RC300-HNG-RC400-RCT-MLT-HHT- HNG- 2166-330-5301-7060-1420TH-3301P2-1401-3003-3002-5320P-5320 -1420/LCD - 3001-1001-SR/P-1001D-1410TH-1410T/LCD-5301P - White Mountain Hearth - Hargrove On/Of -Rasmussen SR-MV1- Kingsman - Superior -Acumen RCK-IW - Real Fyre - iFlame - Grand Canyon - Regency Fire 910-399- 911=175/p - P121-NG P121-LPG - Napoleon F45 GL22 GL28 GL32 GD36PTR central

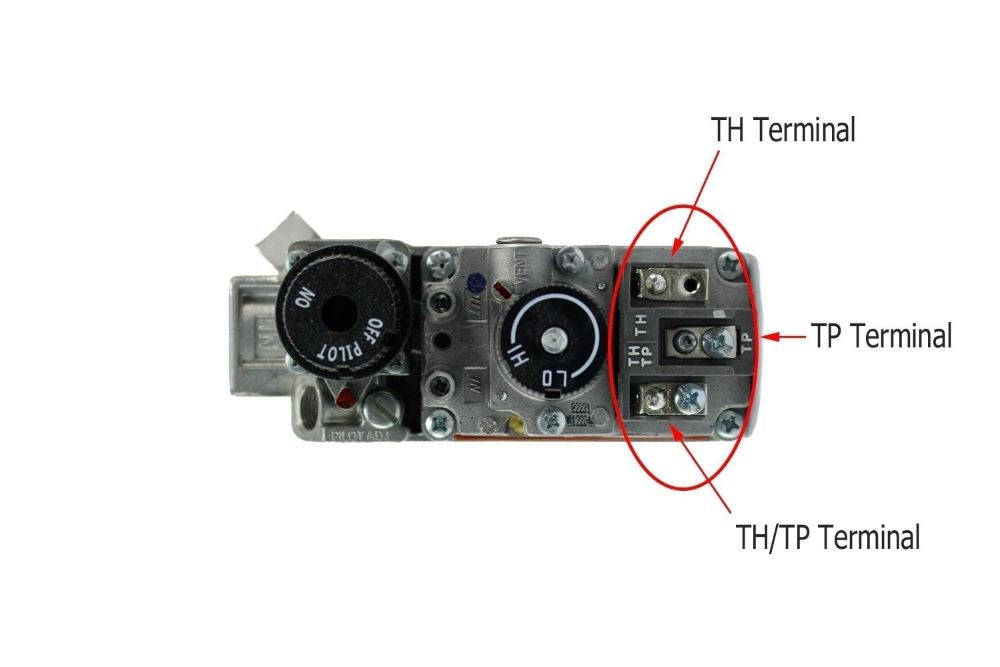

• Pre-programmed for quick Installation simply connect the two terminals to the TH and TH/TP terminals of the millivolt valve. Pairing : Manufacture have done default programming ,simply insert the batteries and slide the receiver switch into remote position, and from the remote you can turn the fireplace ON/OFF.

• Upgraded fireplace basic remote on/off control system kit fits standard millivolt valve gas fireplace remotes

• Attention :This kit does not work with Latching Solenoid gas valve systems please read your fireplace directions for correct application before purchase. these are some models that is not compatible with this remote: Skytech : Con TH - Con TH AF-LMF-RV Valve Un3-Skytech MRCK TH SR-1001TH - un3rxHargrove On/Off , High/Low Variable flame- TSTSC Pleasant Hearth VFF-PH32DRVFF2-PH32DRB gh03 r-gda gh03 r-rg04 1m-gda gh03 r-g6r h3t5 zv- rg042m- Pleasant Hearth VFL2-VO24DR- GLD2470R- RCAF 1 -RCAF 2

• This remote-control system requires two (2) “AAA” and four (4) “AA” (batteries not included) , 1 Year warranty , for any issue or questions regarding this product please contact us

• Safety Informations:.This remote-control system is designed for use with a millivolt or 24V gas valve system. Do not use this remote-control system on applications with voltages above 24 Volts AC/DC and 1 amp current.The remote receiver should be kept away from temperatures exceeding 130º F

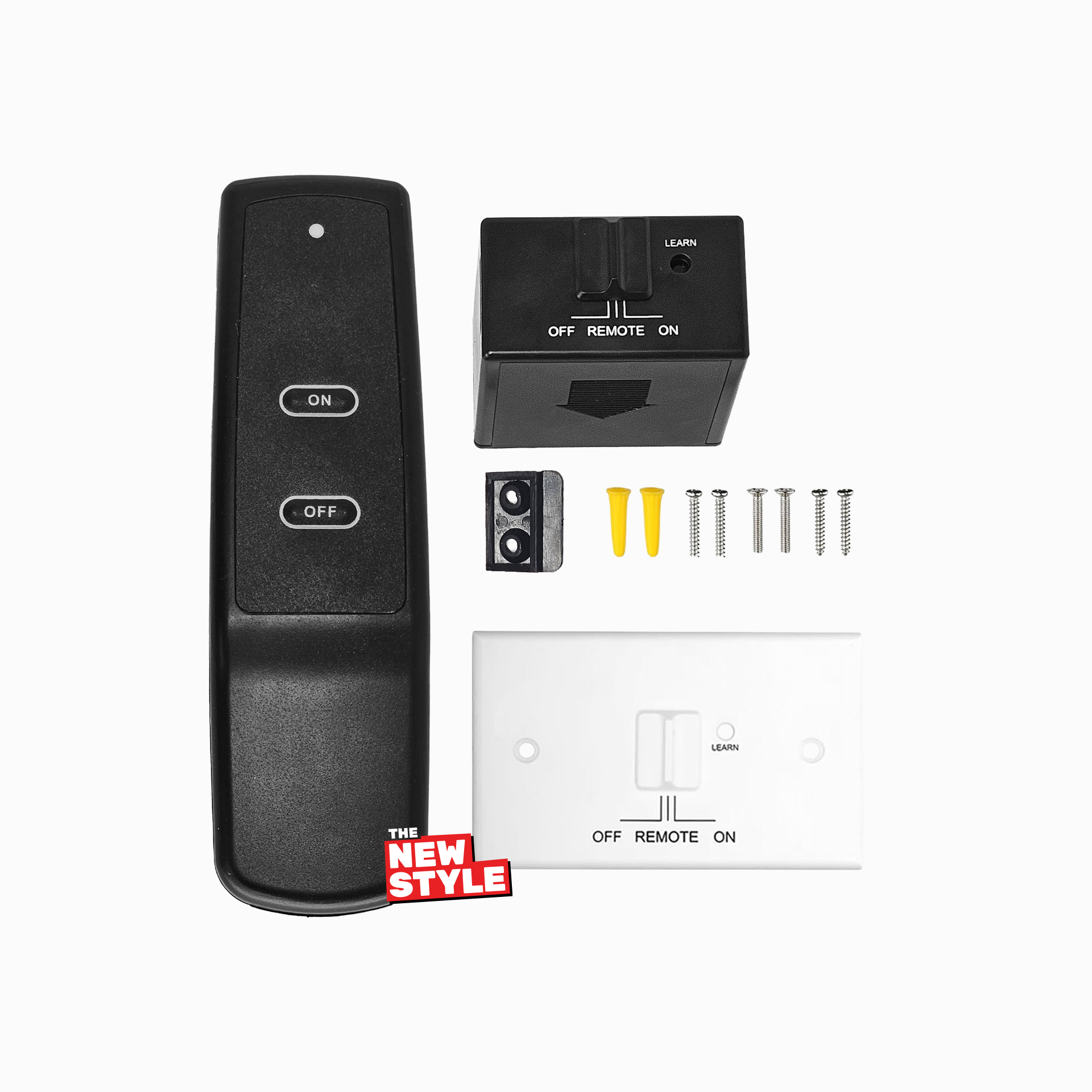

Fireplace remote control and receiver with Basic On/Off Function

•  It can Direct replacement for SKYTECH fireplace ,Ambient fireplace ,Majestic Fireplaces , Monessen Fireplaces, Vermont Castings Fireplaces and Stoves

• This basic on/off remote control system provides a safe, reliable, and user-friendly remote control for millivolt valve gas appliances.

• The system can be manually turned on and off with the transmitter.

                             LEARNING TRANSMITTER TO RECEIVER

1-The transmitter privacy (DIP) Switches are preset at the factory. Setting the 4 DIP Switches on transmitter to select a security code

2- Put the receiver slide switch to “REMOTE” location. Using a small screwdriver or end of a paper clip gently press and hold the ‘LEARN button on the receiver to accept the transmitter security code upon initial use, when you release the LEARN button the receiver will emit an audible 3 “beep” sounds

3- After the receiver emits 3 “beep” sounds. Press the transmitter “ON “or “OFF” button and release at once. The receiver will emit several beeps indicating that the transmitter’s code has been accepted into the receiver

Note: If matching failed from the the first attempt please repeat step 1-3

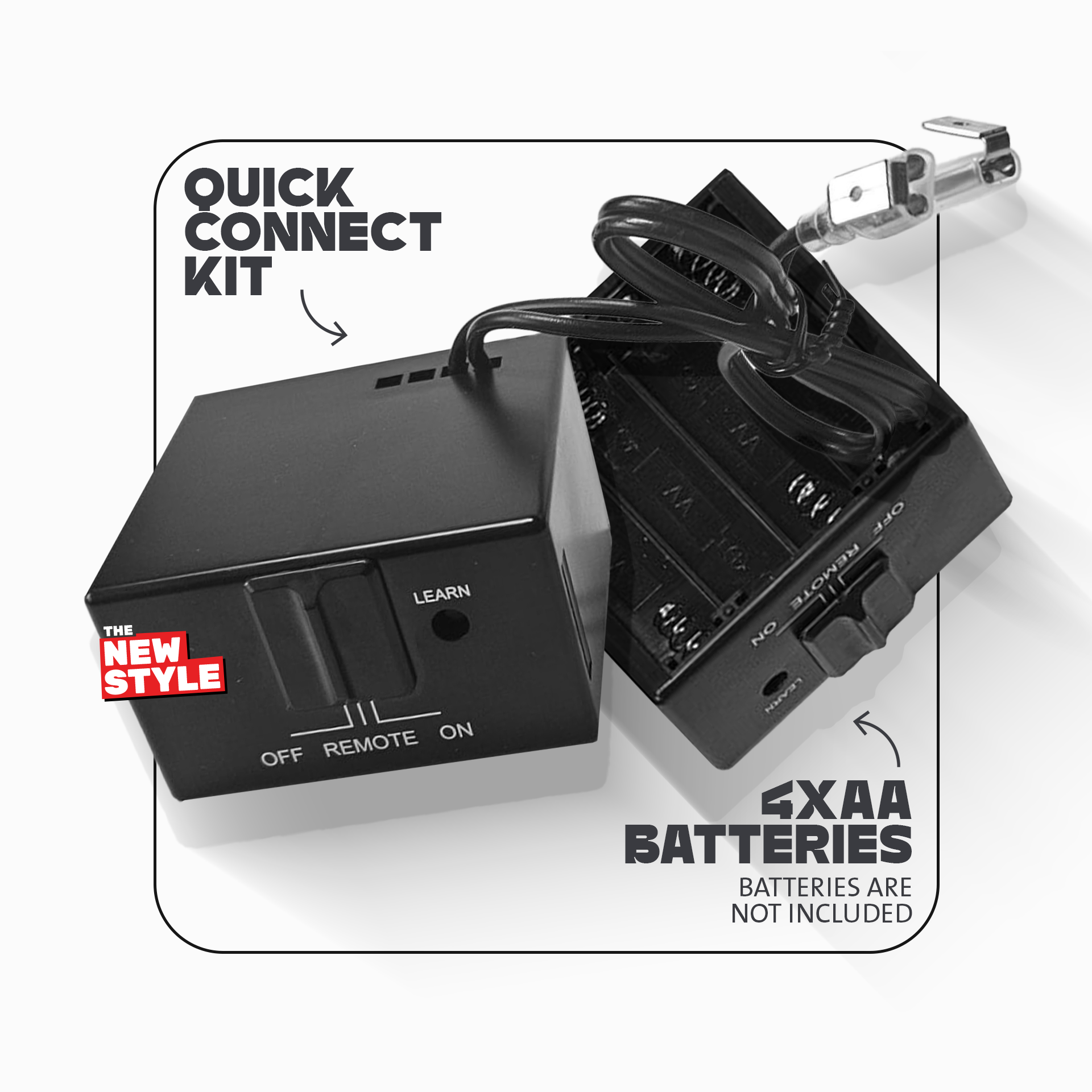

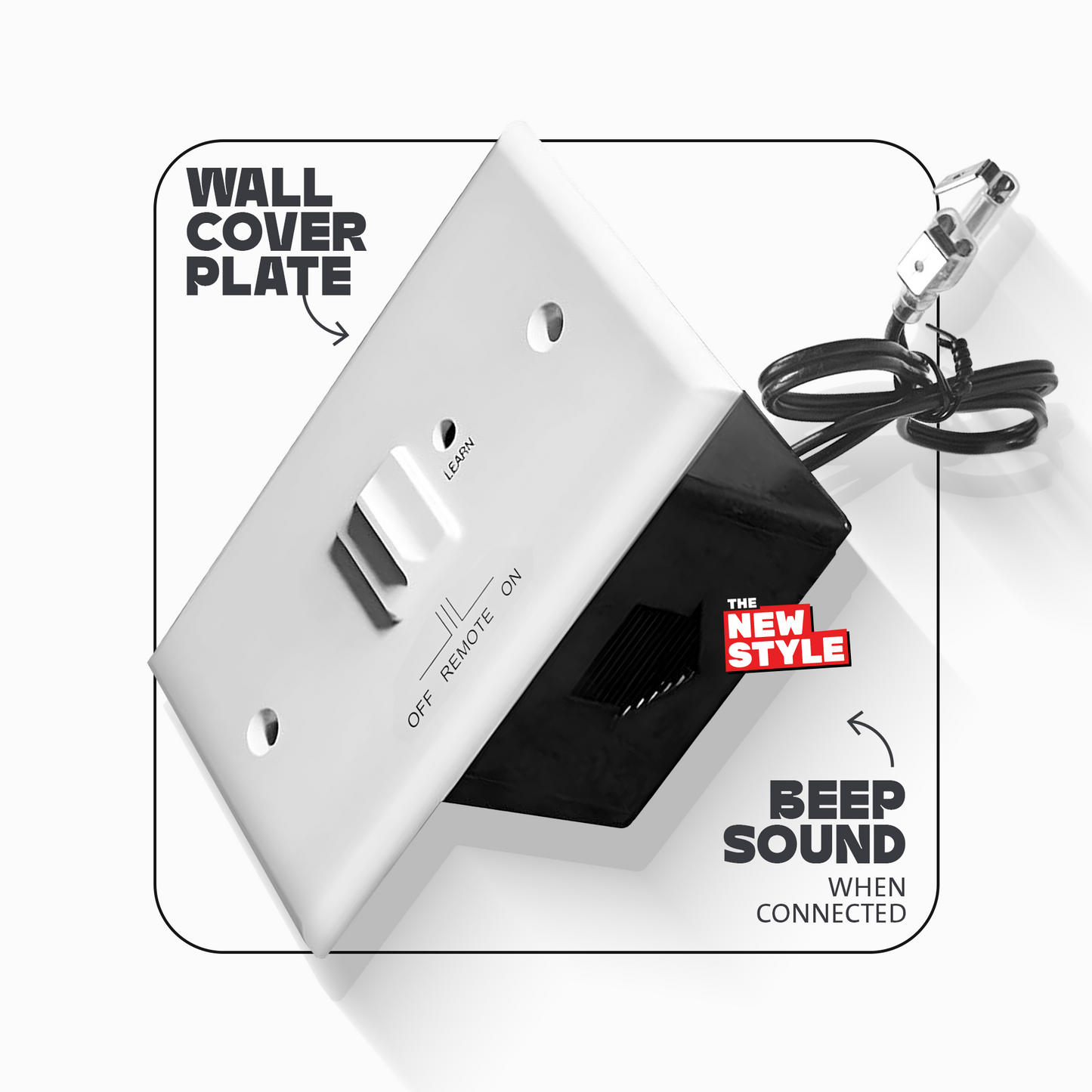

Receiver Overview

• Receiver connects to any standard millivolt gas valve system

• Easy access to the receiver's battery compartment uses a sliding battery cover

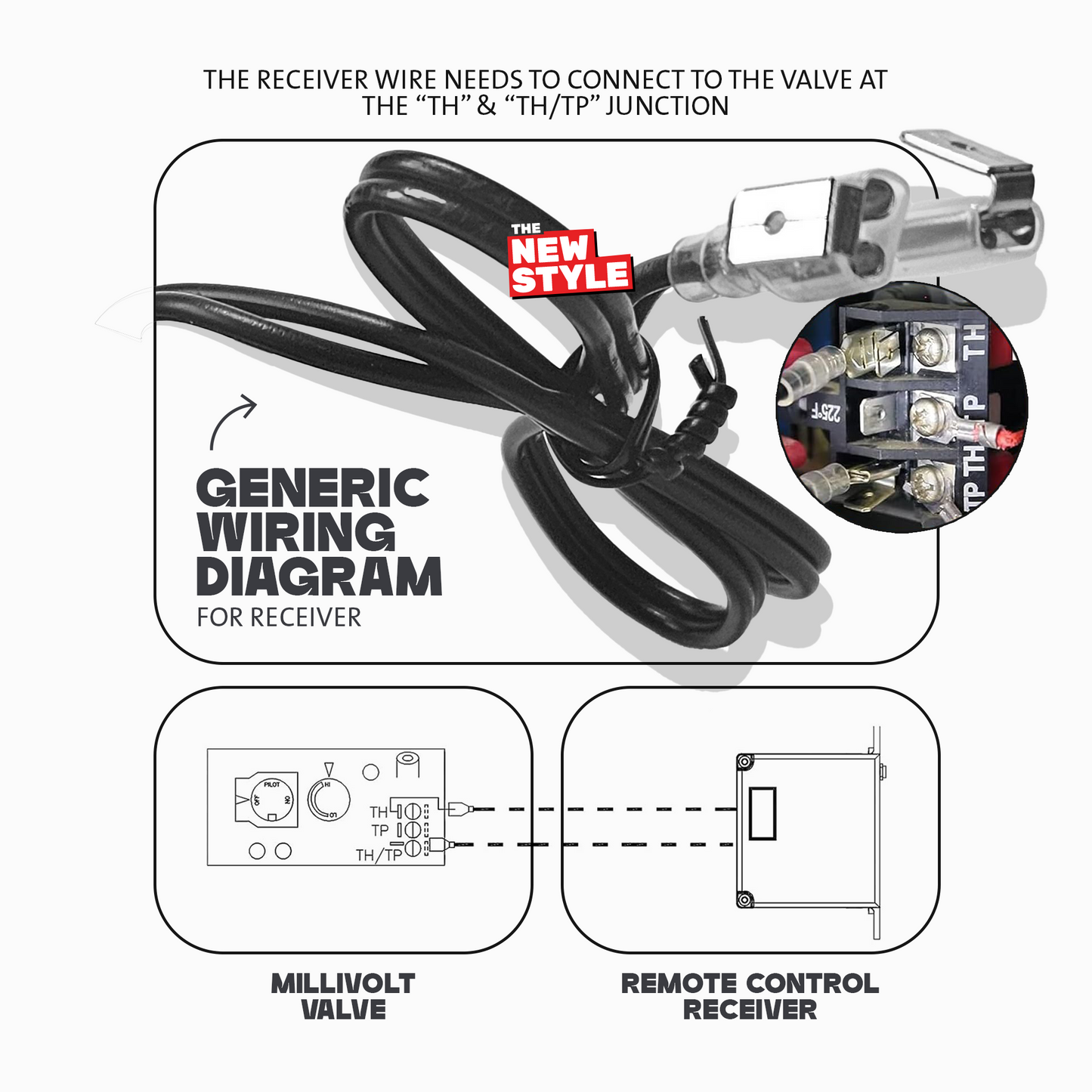

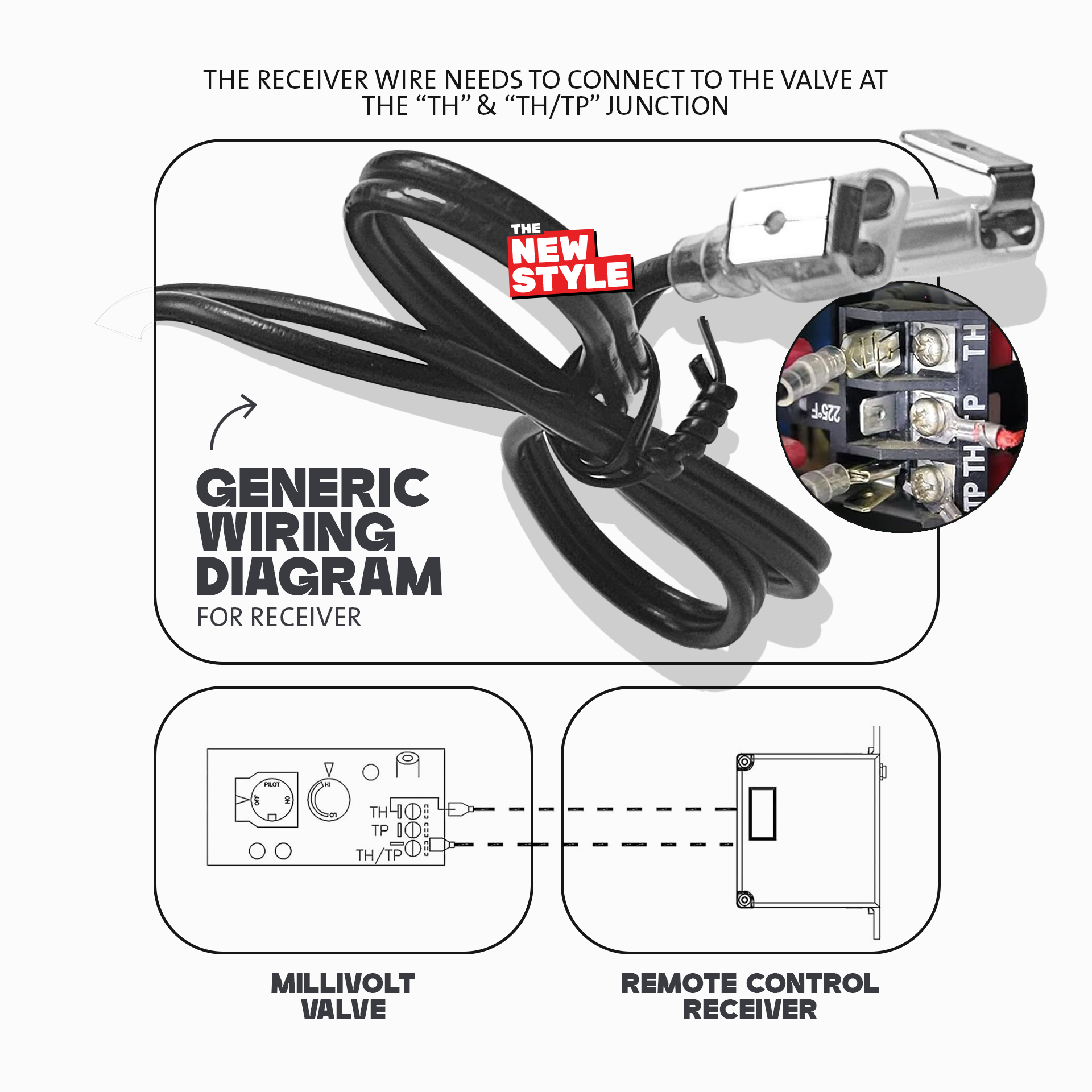

• Pre-programmed for quick Installation simply connect the two terminals to the TH and TH/TP terminals of the millivolt valve, install the batteries . After the connection is successful, the receiver will beep and thats it ready to use

• The Receiver Have a Learn Button

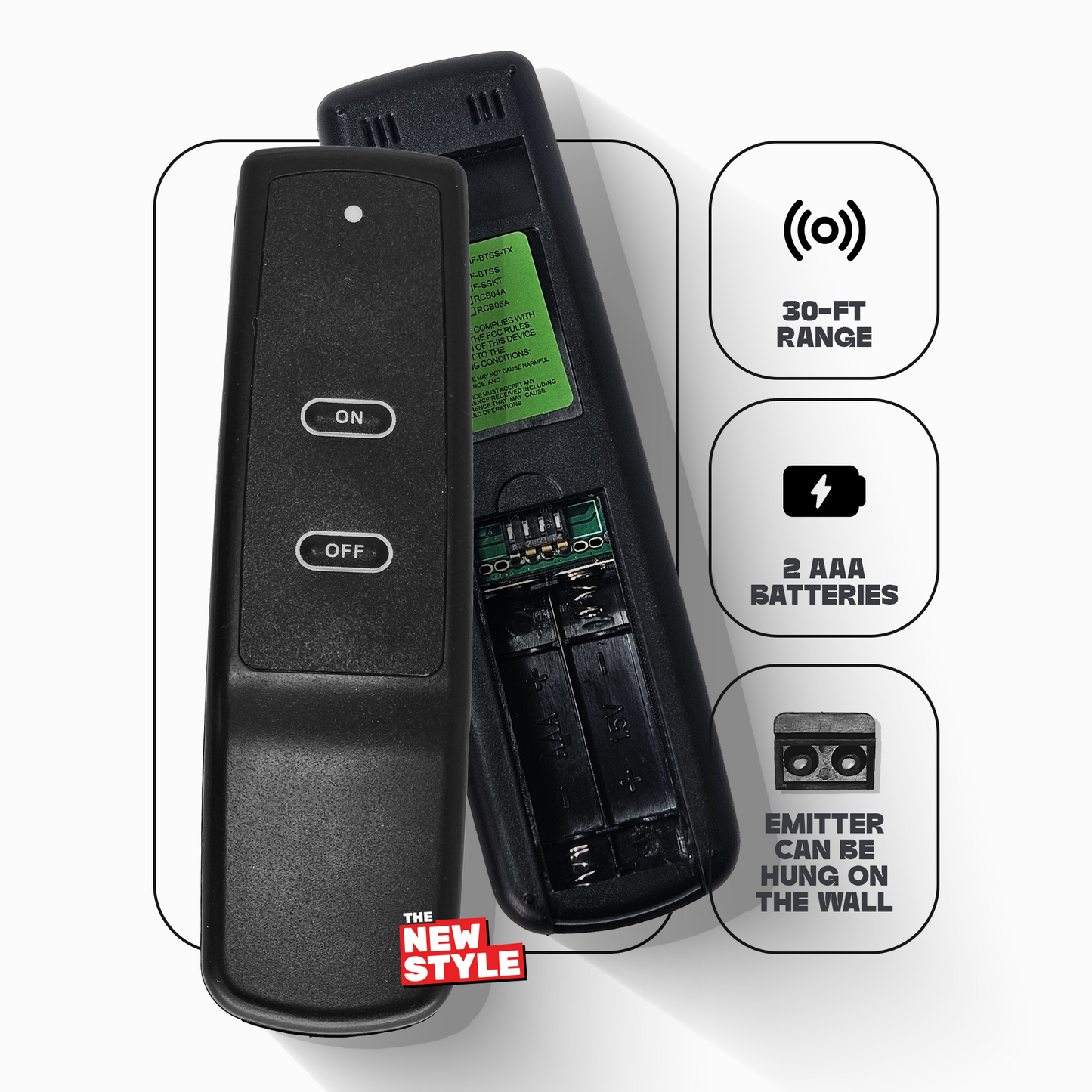

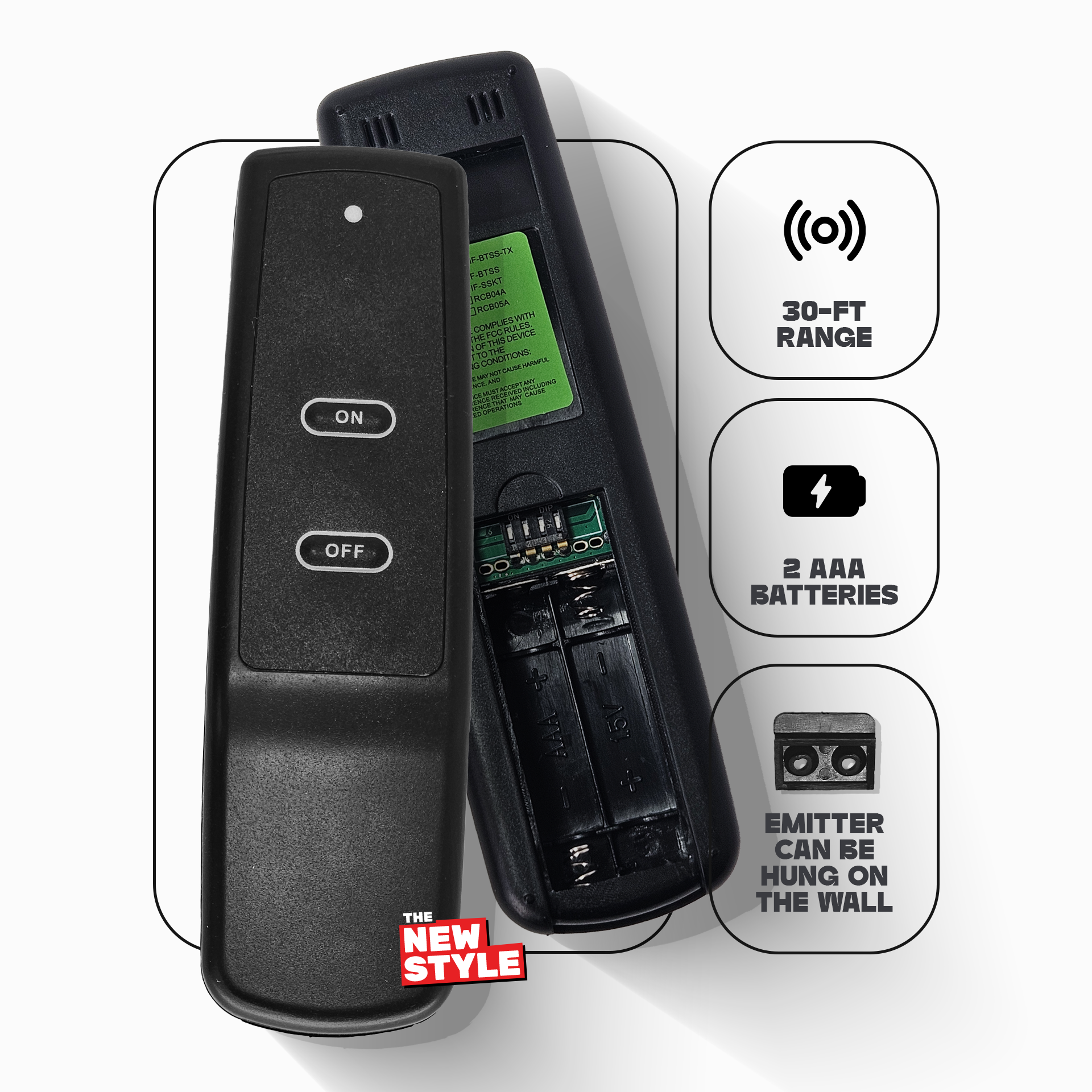

Remote Overview

• This remote control system is designed for use with a millivolt or 24V gas valve system

• This wireless on/off/ remote control system provides a safe, reliable, and user friendly remote control for millivolt valve gas appliances

• Remote have Dip Switches to set your own security code
