Remote Control Kit RCST, On/Off Thermostat LCD
Remote Control Kit RCST, On/Off Thermostat LCD
Couldn't load pickup availability

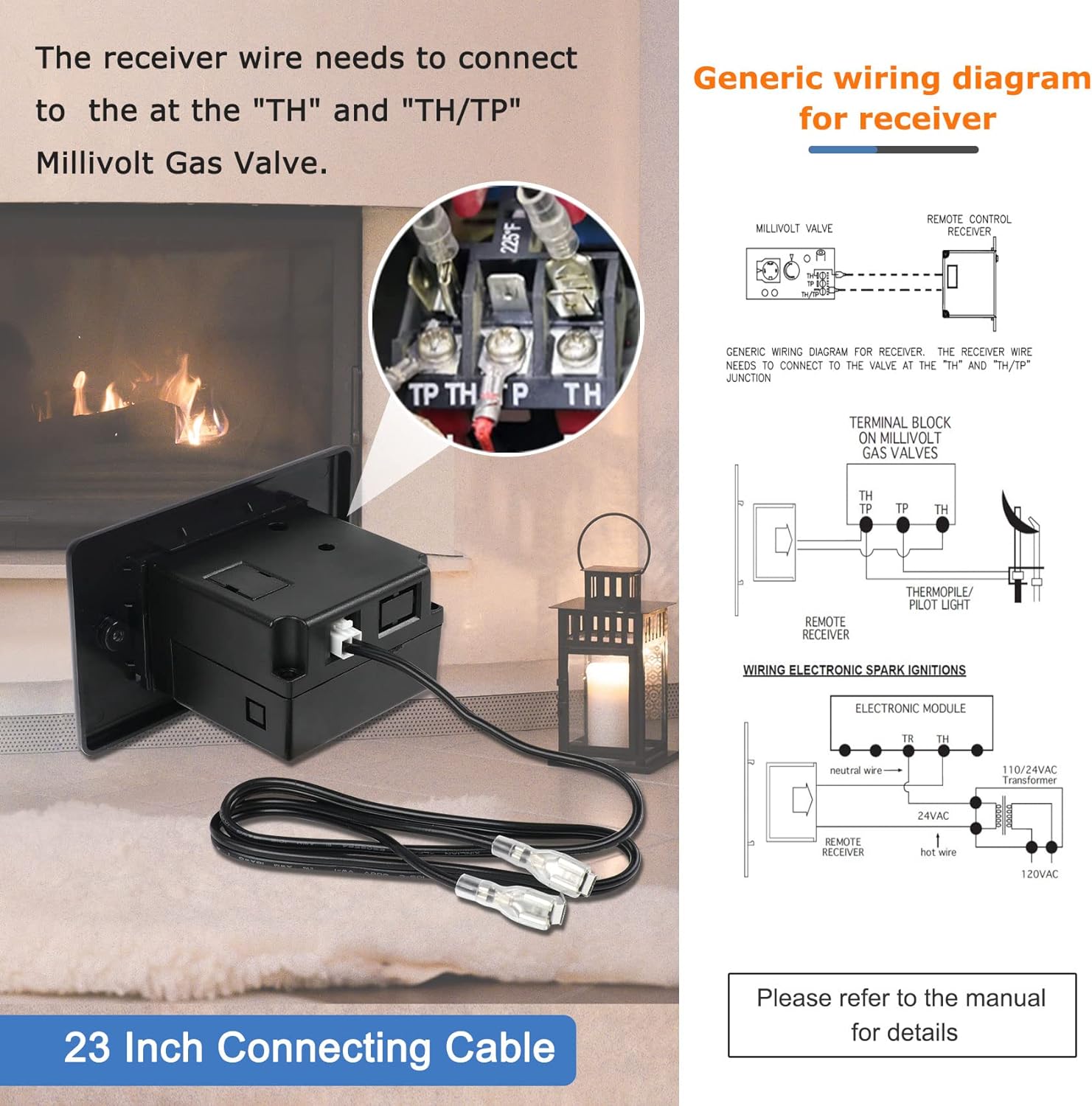

- To use the fireplace basic remote on/off control system kit, simply connect the two terminals to the TH and TH/TP terminals of the millivolt valve
- Remote allows you to turn your gas logs on/off or set the temperature you want

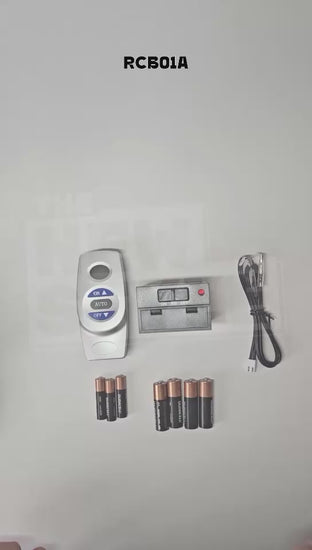

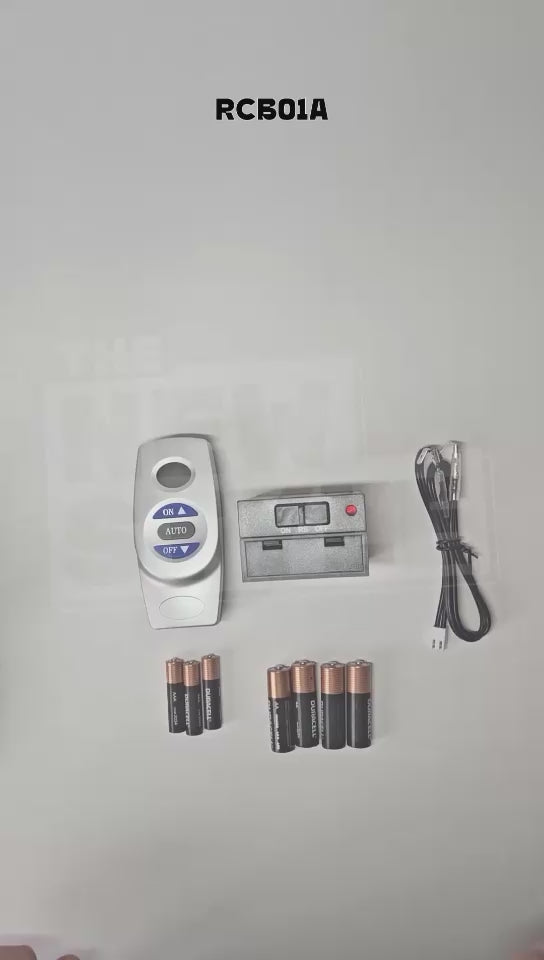

- Includes remote, receiver, wall plate, and wiring to connect receiver to valve

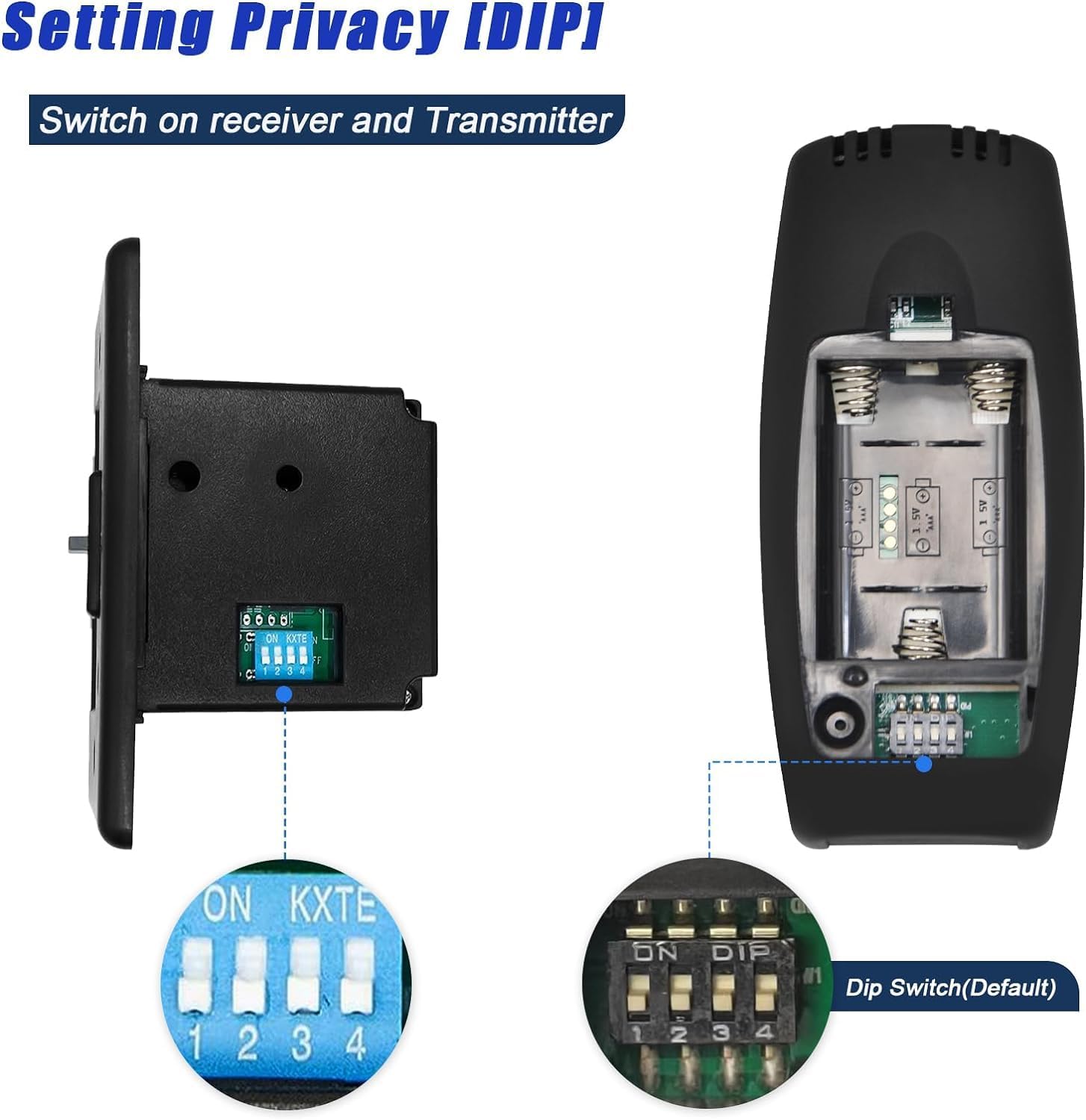

- DIP switches on the transmitter and the receiver must have the same position on both in order for the system to work , if not matched the transmitter will not work, check the photos to find the place of the dip switches on both.
- 1 Year warranty , for any issue or questions regarding this product please contact us
- Replacement for SKYTECH - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves
- Reset button can be used to reset the transmitter if transmitter is not working properly. The reset button is located behind the battery door cover. Using a paper clip, press the reset button and the transmitter will reset and initialize for 10 seconds before it can be used.
- Testing the kit : make sure the receiver is on the RS mode ,press ON or OFF button from the transmitter, the receiver should indicate a red flashing light , that means transmitter is connected with receiver, if not make sure that the dip switches are in the same position and matched on both transmitter and the receiver.
- Attention :This kit does not work with Latching Solenoid gas valve systems please read your fireplace directions for correct application before purchase. these are some models that is not compatible with this remote: Skytech : Con TH - Con TH AF-LMF-RV Valve Un3-Skytech MRCK TH SR-1001TH - un3rxHargrove On/Off , High/Low Variable flame- TSTSC Pleasant Hearth VFF-PH32DRVFF2-PH32DRB gh03 r-gda gh03 r-rg04 1m-gda gh03 r-g6r h3t5 zv- rg042m- Pleasant Hearth VFL2-VO24DR- GLD2470R- RCAF 1 -RCAF 2
- Compatible with some common models Skytech :1001-MRCK(SR-1001) -1001t -1001TH-3002-1420-SKY-3003P-TX/SKY-3003-TX-Skytech Stat IV Heat-N-Glo-TM/R2 -TS /R-2-TS-3- Sky-Ws-TM-3- 8001-TX -RC300-HNG-RC400-RCT-MLT-HHT- HNG- 2166-330-5301-7060-1420TH-3301P2-1401-3003-3002-5320P-5320 -1420/LCD - 3001-1001-SR/P-1001D-1410TH-1410T/LCD-5301P - White Mountain Hearth - Hargrove On/Of -Rasmussen SR-MV1- Kingsman - Superior -Acumen RCK-IW - Real Fyre - iFlame - Grand Canyon - Regency Fire 910-399- 911=175/p - P121-NG P121-LPG - Napoleon F45 GL22 GL28 GL32 GD36PTR central
Fireplace remote control and receiver with AUTO Thermostat Function
• It can Direct replacement for SKYTECH - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves
• The system can be thermostatically or manually turned on and off with the transmitter
• This remote control system is designed for use with a millivolt or 24V gas valve system.

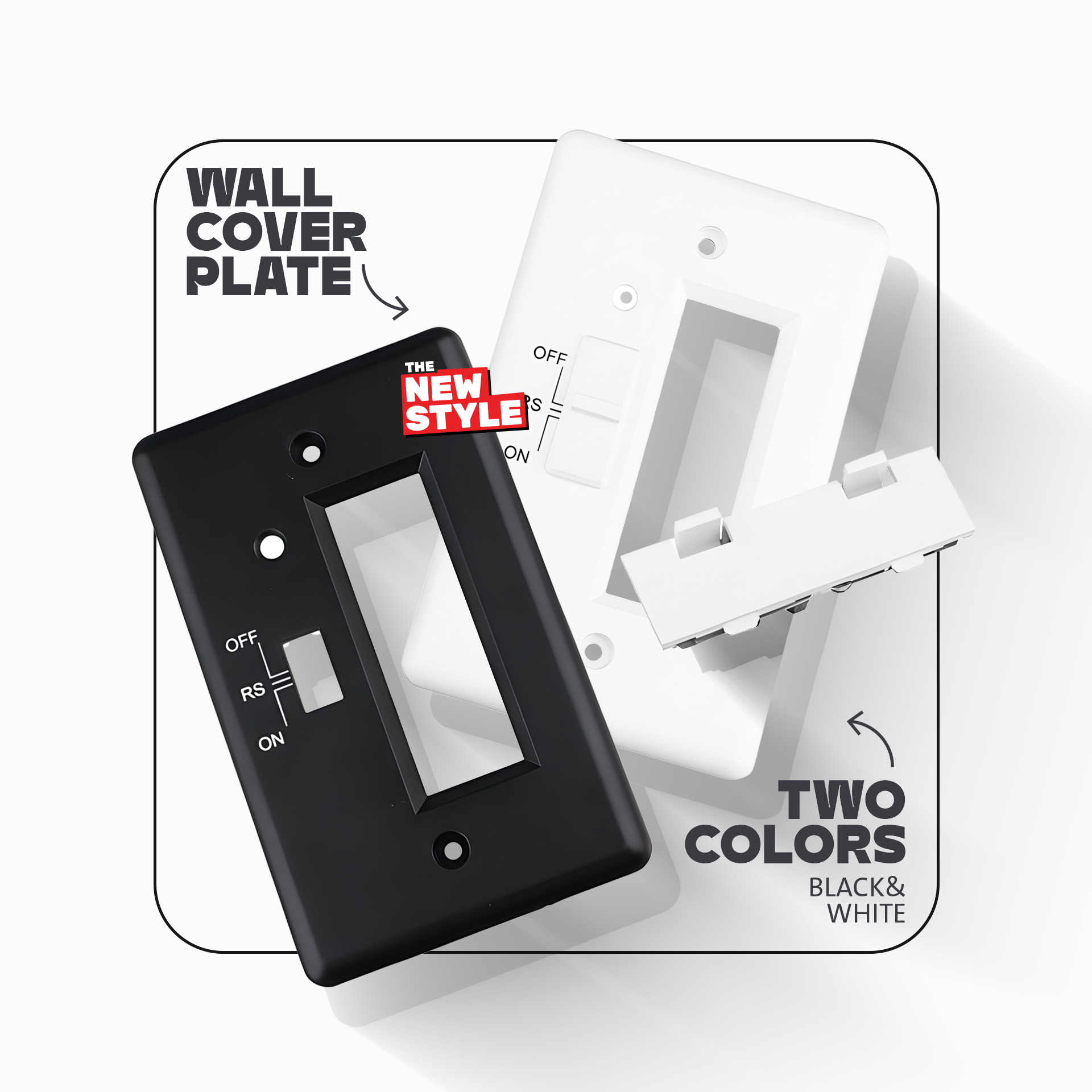

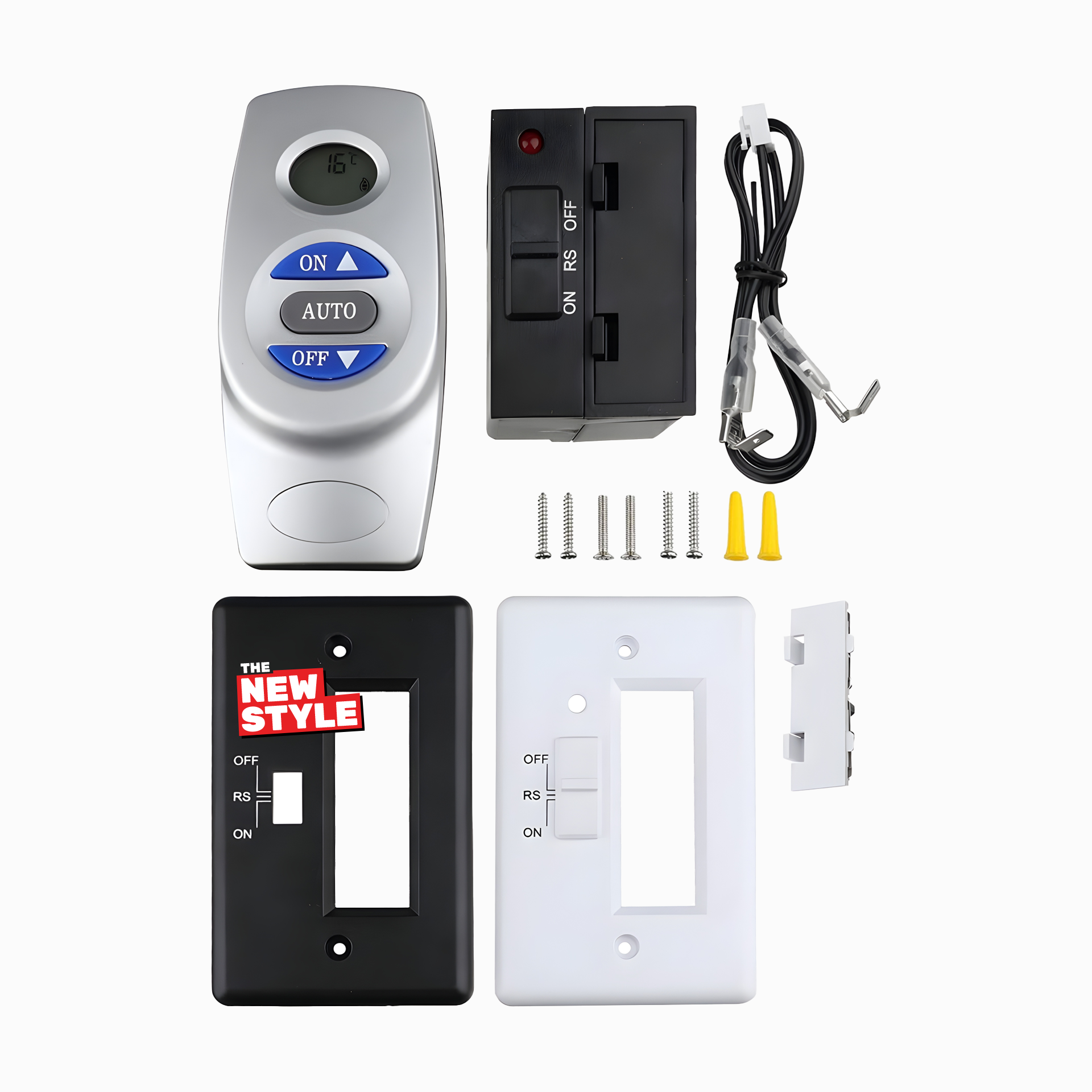

• Includes remote, receiver, wall plate, and wiring to connect receiver to valve
Attention: This does not work with Latching Solenoid gas valve systems please read your fireplace directions for correct application before purchase.

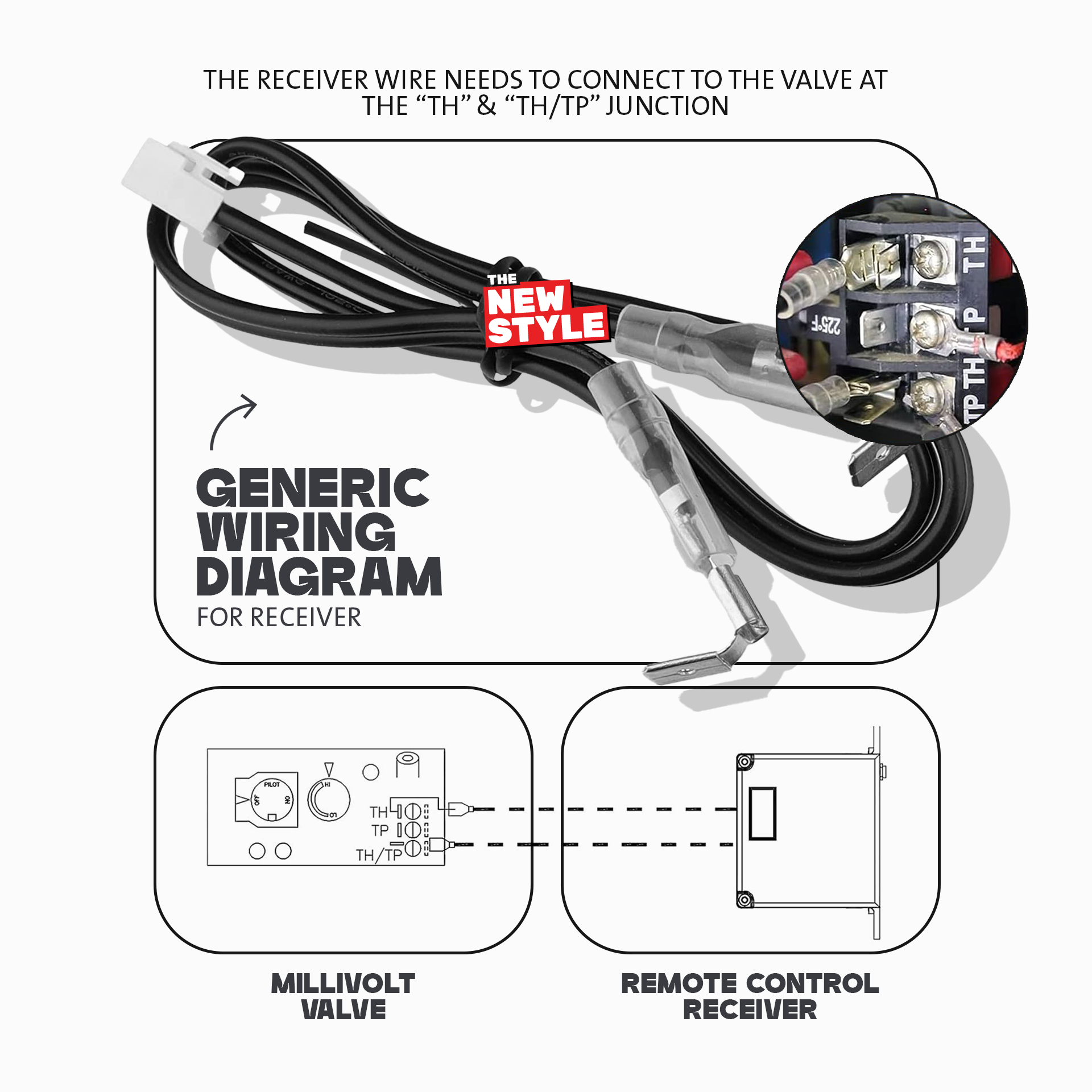

• Insert the white terminal to the back of the receiver , Do not force the terminal plug onto the receiver, connect the two terminals to the TH and TH/TP terminals of the millivolt valve, install the batteries and you're ready to go.
• DIP switches on the transmitter and the receiver must have the same position on both in order for the system to work , if not matched the transmitter will not work, check the photos to find the place of the dip switches on both.
REMOTE

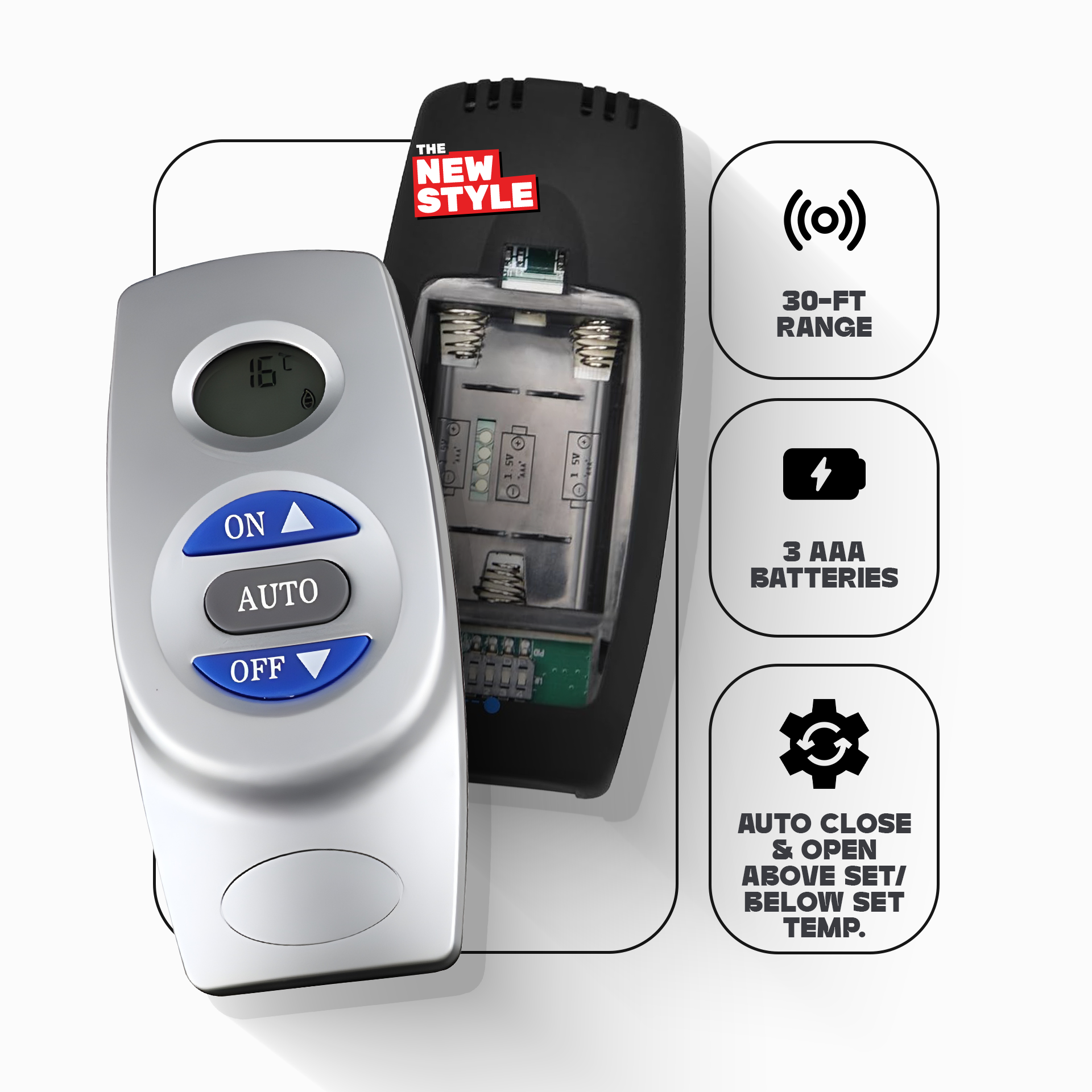

• This wireless thermostatic on/off/ remote control system provides a safe, reliable, and user friendly remote control for millivolt valve gas appliances.
• The system can be thermostatically or manually turned on and off with the transmitter
• Remote Control has two (2) operating modes: Manual and Thermostatic. The control system can be set to temperature ranges between 45°F and 90°F.
• The reset button can be used to reset the transmitter if transmitter is not working properly. The reset button is located behind the battery door cover. Using a paper clip, press the reset button for 5 seconds until the blue lcd screen shows the temperature display .
LEARNING TRANSMITTER TO RECEIVER
1.The transmitter privacy (DIP) Switches are preset at the factory. Setting the 4 DIP Switches on transmitter and receiver on the same position.

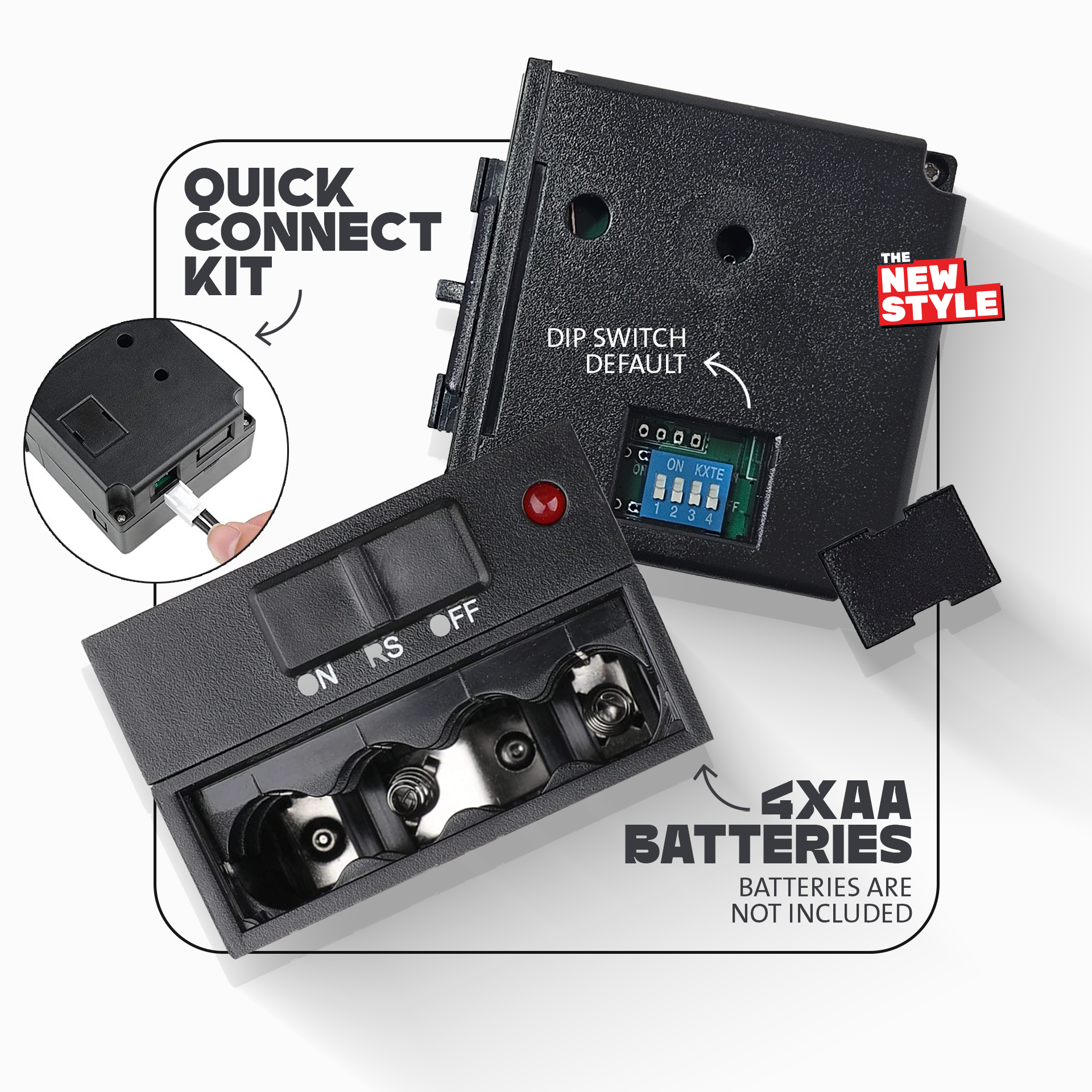

2.Put the receiver slide switch into RS mode , then press the On or Off button from the remote ,the receiver should indicate a red flashing light , that means transmitter is connected with receiver, if not make sure that the dip switches are in the same position and matched on both transmitter and the receiver.
