The-New-Style Remote Control ON/Off and Thermostatic Kit for Gas Fireplace ,for Ambient Majestic Vermont-castings skytech monessen etc,Millivolt Gas Valve Fireplaces and Stoves

• Attention: This Kit Does Not Work With Latching Solenoid Gas Valve Systems Please Read Your Fireplace Directions For Correct Application Before Purchase.

• Upgraded gas fireplace remote control thermostat has a blue backlight for better vision at night ,Remote allows you to turn your gas logs on/off or set the temperature you want
Includes remote, receiver, wall plate, and wiring to connect receiver to valve

• Easy access to the receiver's battery compartment uses a sliding battery cover , Receiver connects to any standard millivolt gas valve system

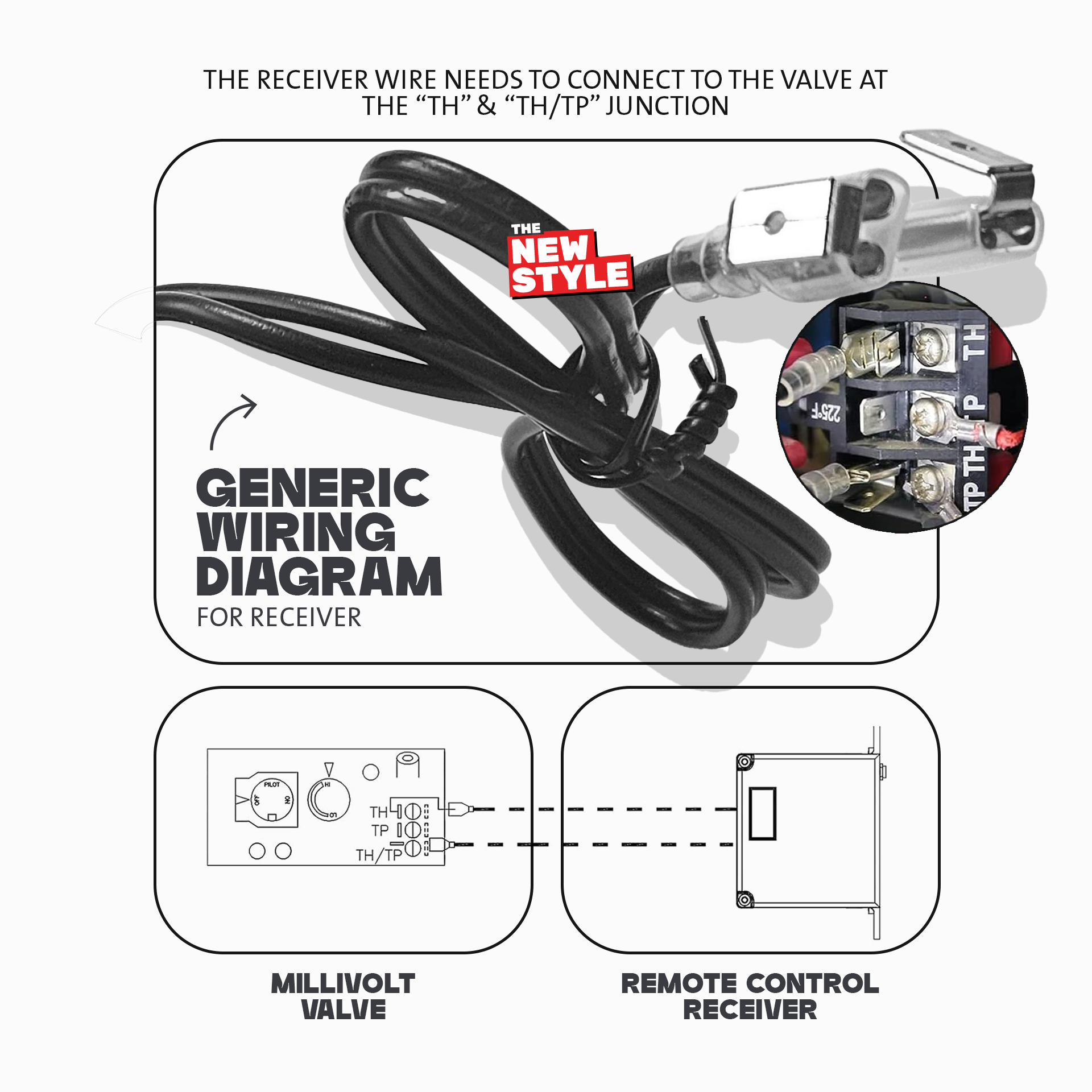

• Pre-programmed for quick Installation simply connect the two terminals to the TH and TH/TP terminals of the millivolt valve, install the batteries . After the connection is successful, the receiver will beep and that's it ready to use

• Direct replacement for SKYTECH - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves

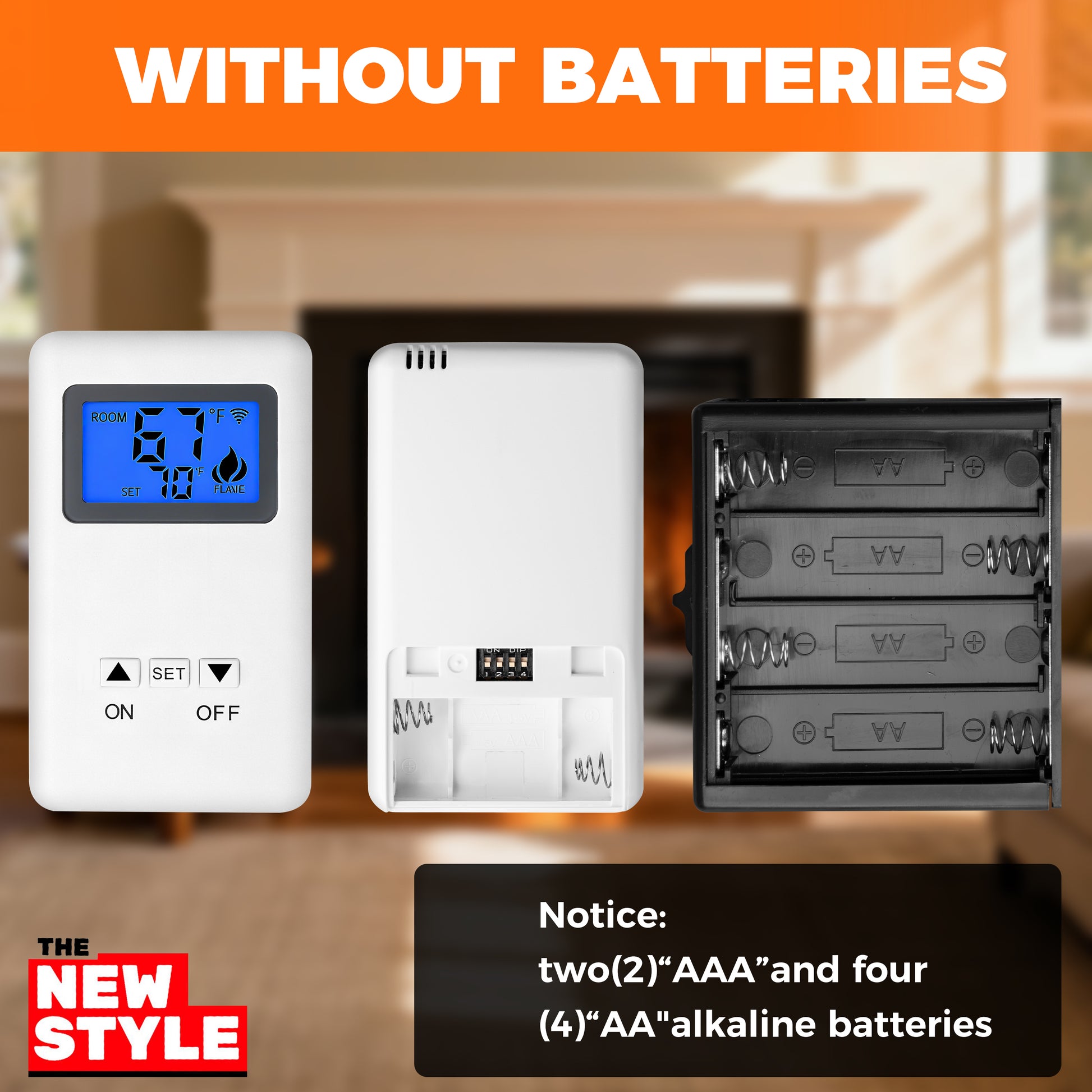

• This remote-control system requires two (2) “AAA” and four (4) “AA” (batteries not included) 1 year warranty

• Safety Information's : This remote-control system is designed for use with a millivolt or 24V gas valve system. Do not use this remote-control system on applications with voltages above 24 Volts AC/DC and 1 amp current .The remote receiver should be kept away from temperatures exceeding 130º F

                                                              KIT OVERVIEW

The-new-style Gas Fireplace Remote Control Thermostat Kit For Millivolt Gas Fireplace

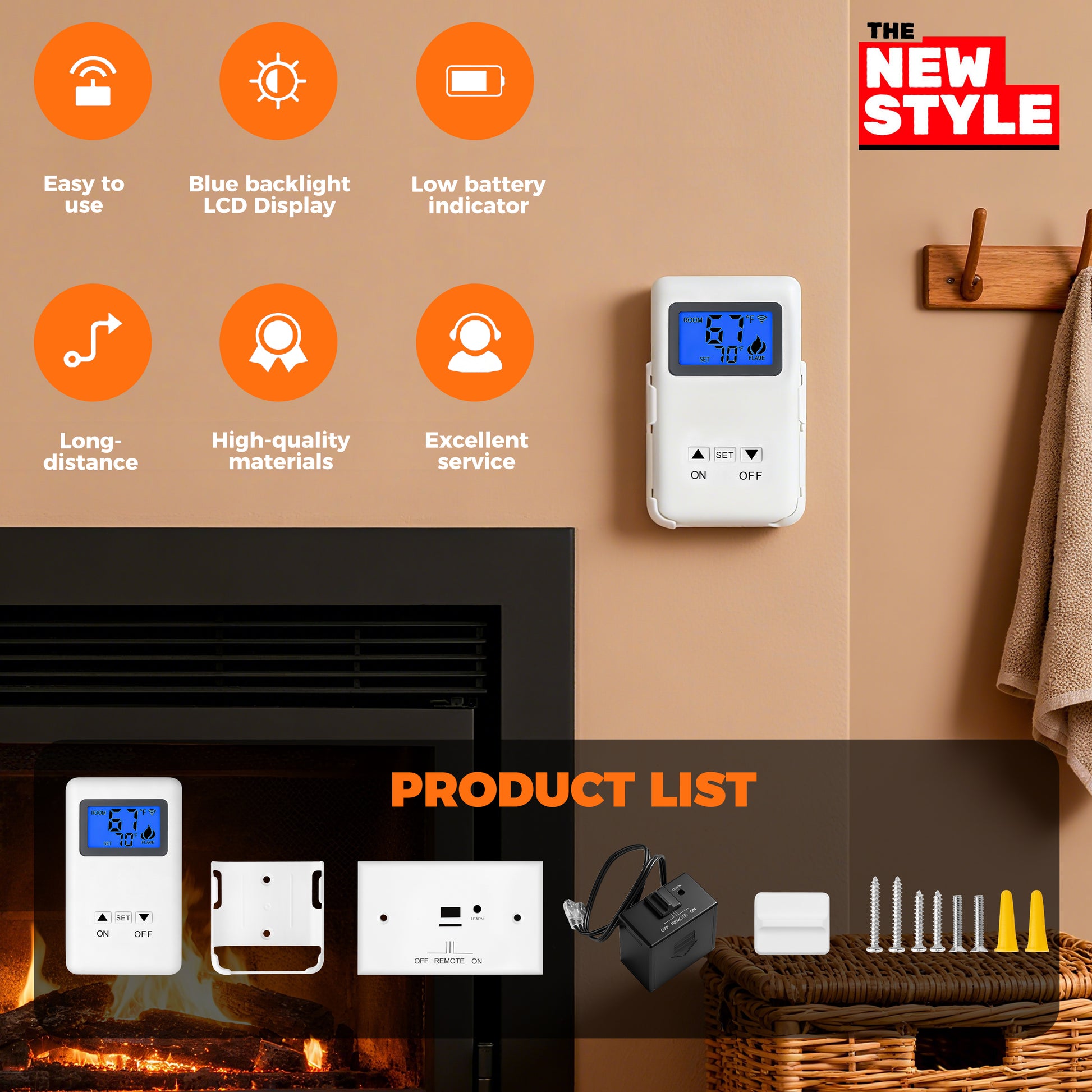

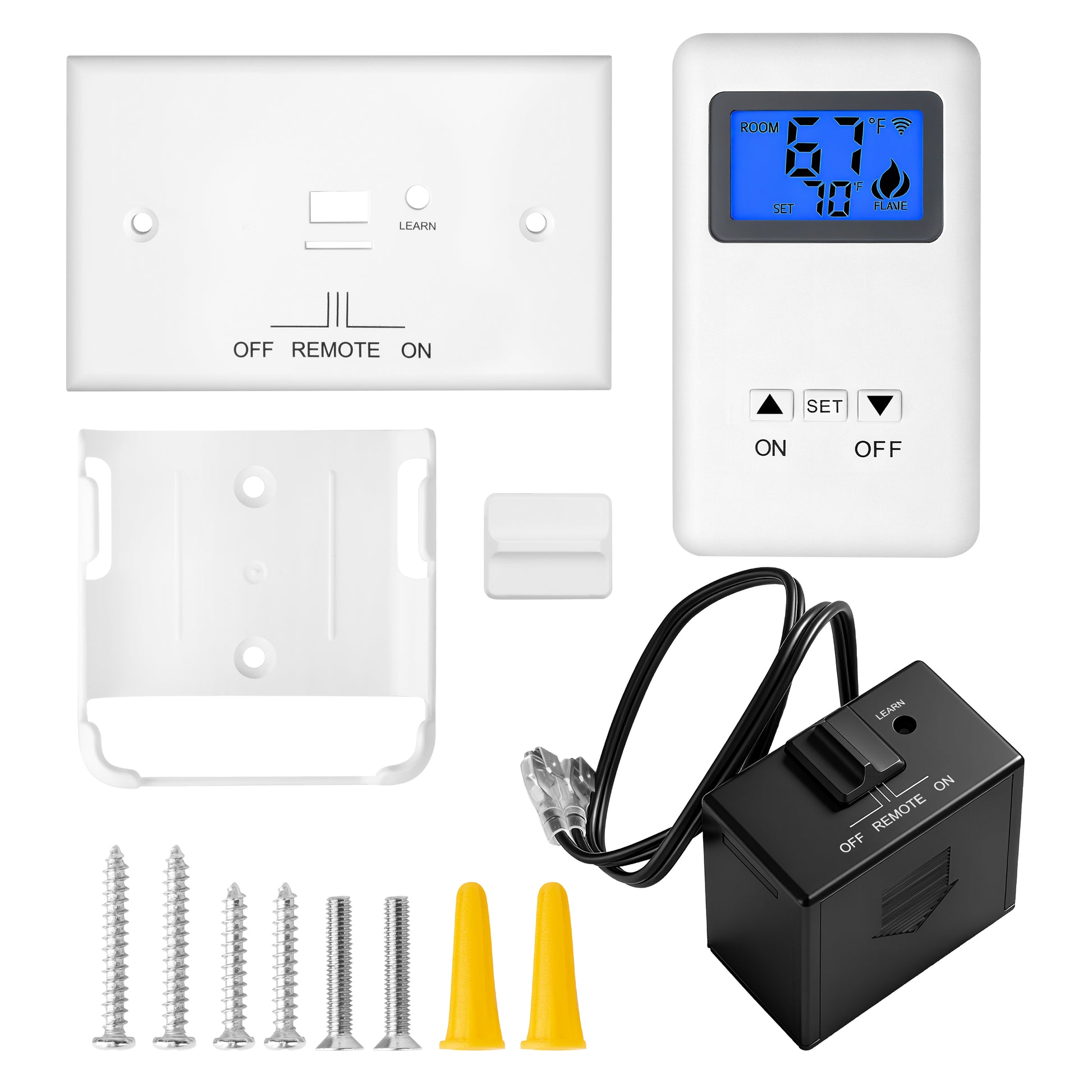

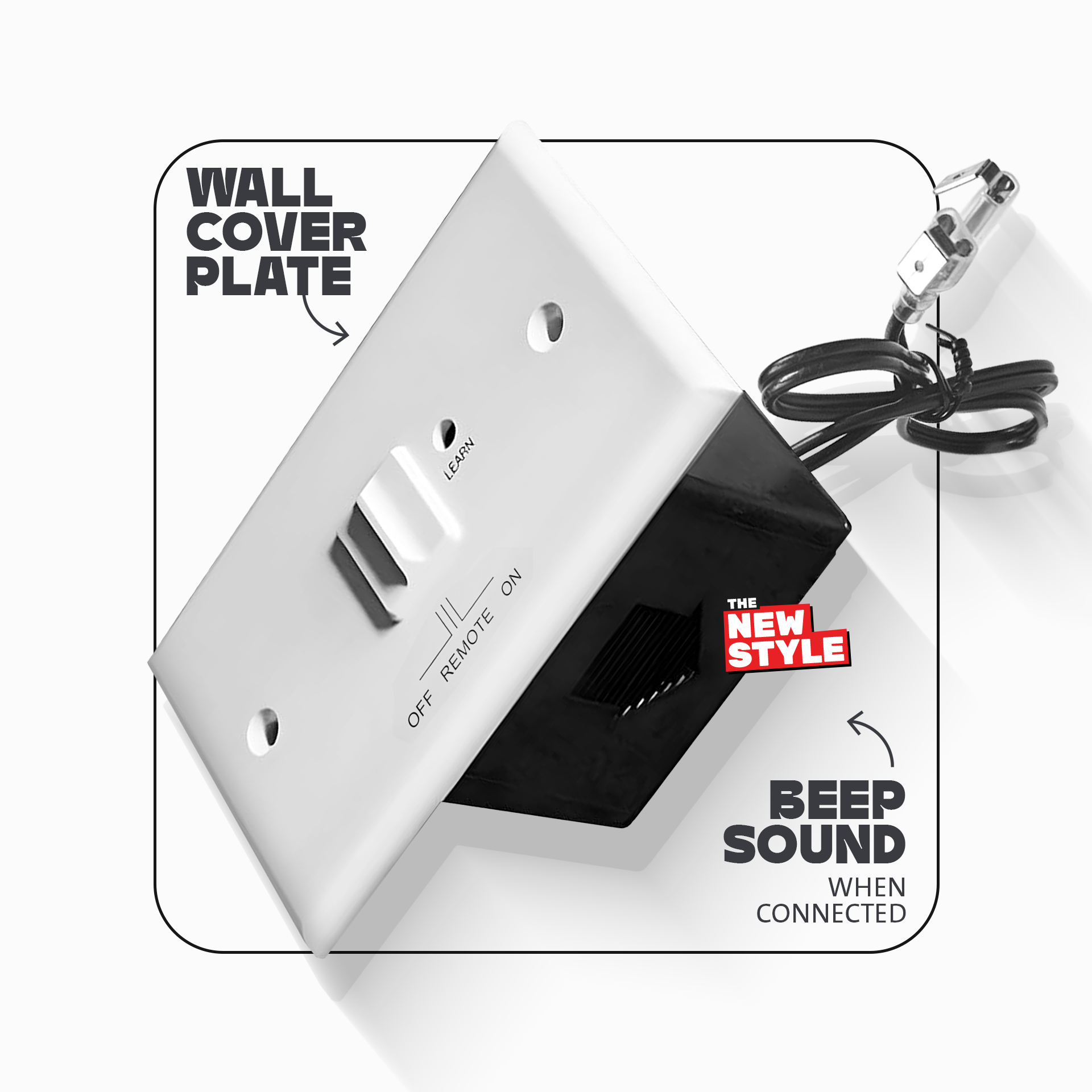

INCLUDE : Remote, Receiver, Wall plate, Wiring to connect receiver to valve System - 6 Screws (For Wall Cover Plate and Remote Control)

• Attention: This Kit Does Not Work With Latching Solenoid Gas Valve Systems Please Read Your Fireplace Directions For Correct Application Before Purchase.

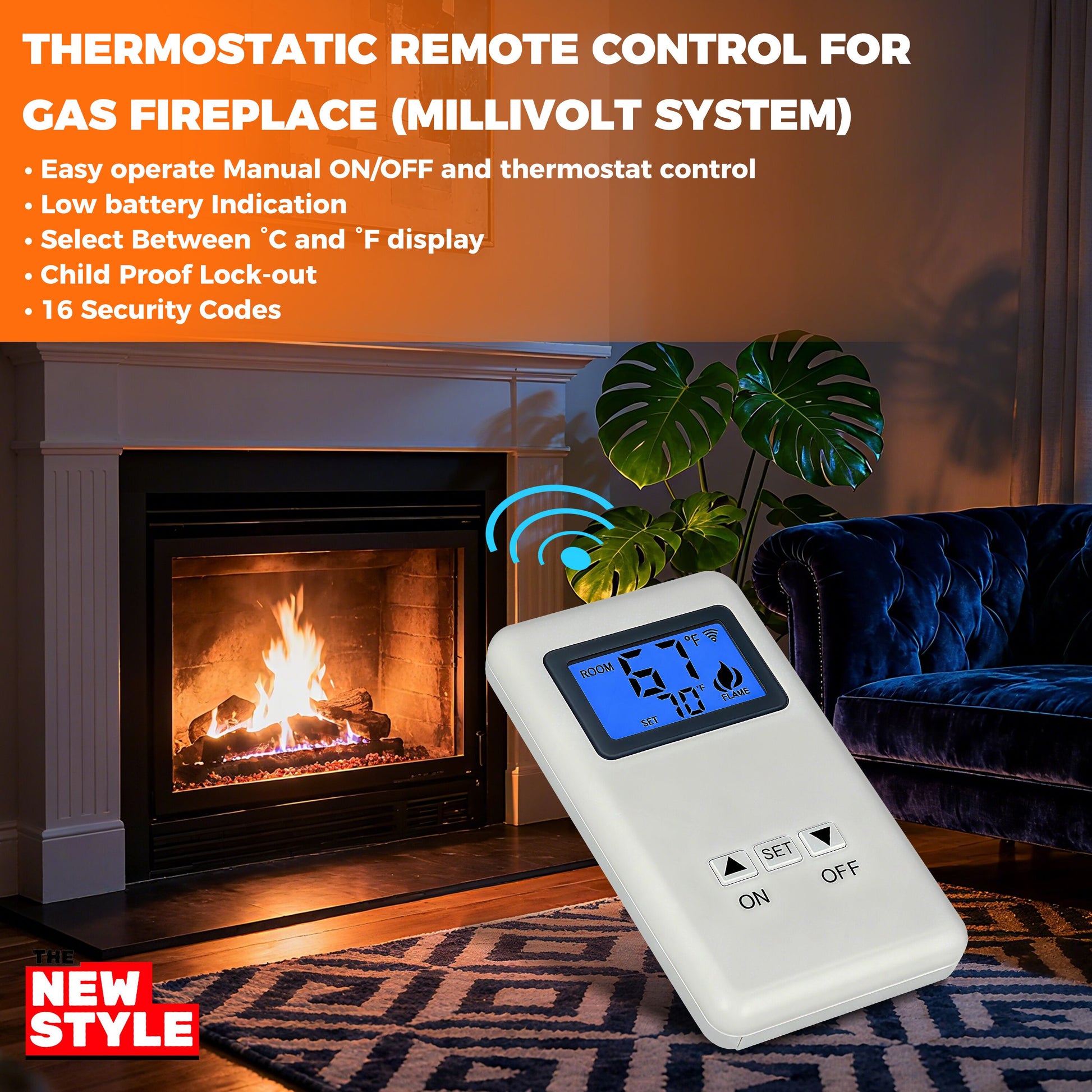

                                   Features

• Easy Access Thermostatic Control
• Battery Powered Transmitter and Receiver
• Low Battery Indication
• Child Proof Lock-out
• 16 Security Codes
• Quick Disconnect Wiring Assembly

                                         Remote Overview

• Fireplace Remote Control and Receiver With AUTO Thermostat Function

• Remote Control Has a Blue Backlight For Better Vision at Night

• Remote Allows You To Turn Your Gas Logs on/off or Set The Temperature You Want

• It Can Direct Replacement For SKYTECH - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves

• This Wireless Thermostatic on/off/ Remote Control System Provides a Safe, Reliable, and User Friendly Remote Control for Millivolt Valve Gas Appliances

• The System Can be Thermostatically or Manually Turned on And off With The Transmitter

• This Remote Control Requires Two (2) “AAA (batteries not included)

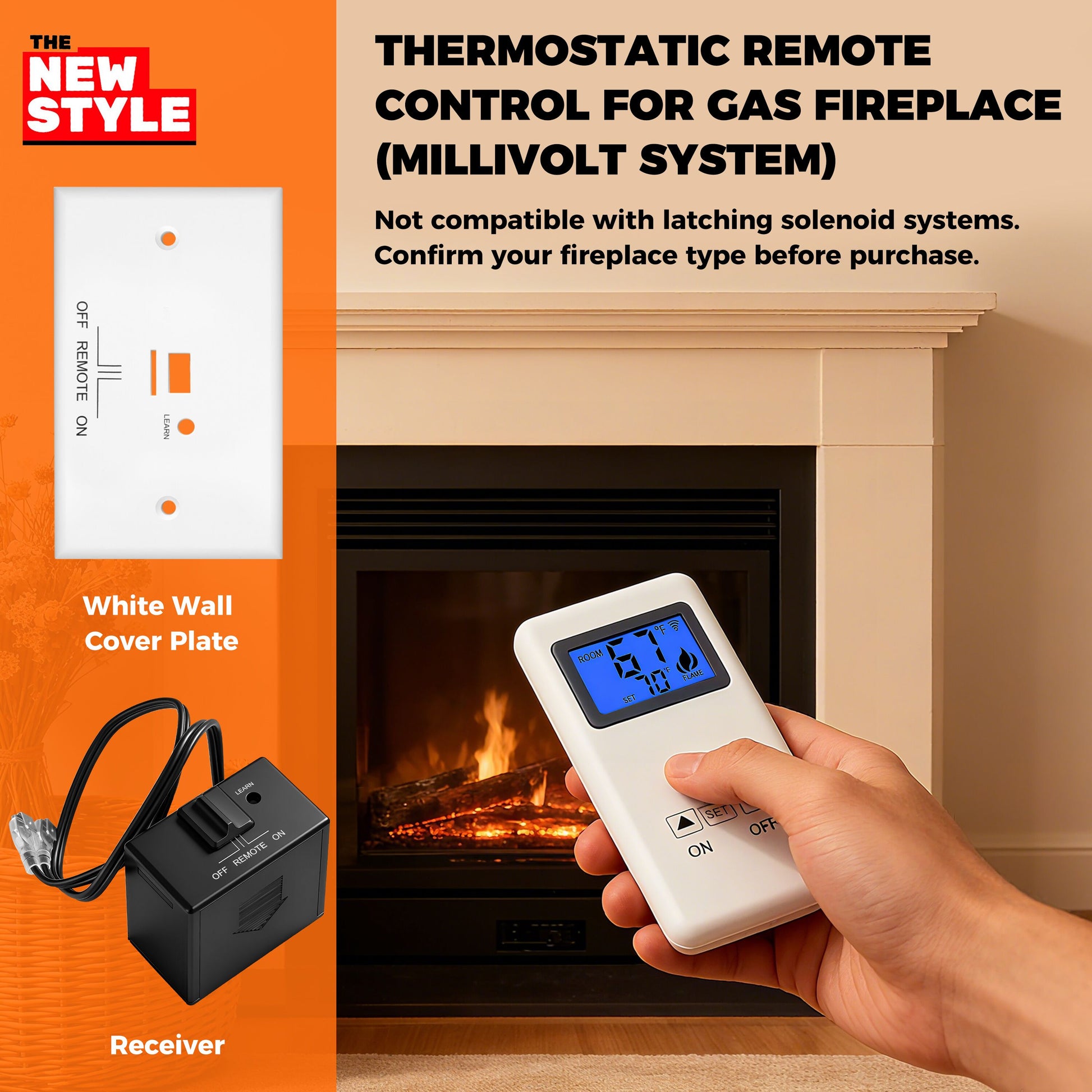

                                                Receiver Overview

• Receiver Connects To Any Standard Millivolt Gas Valve System

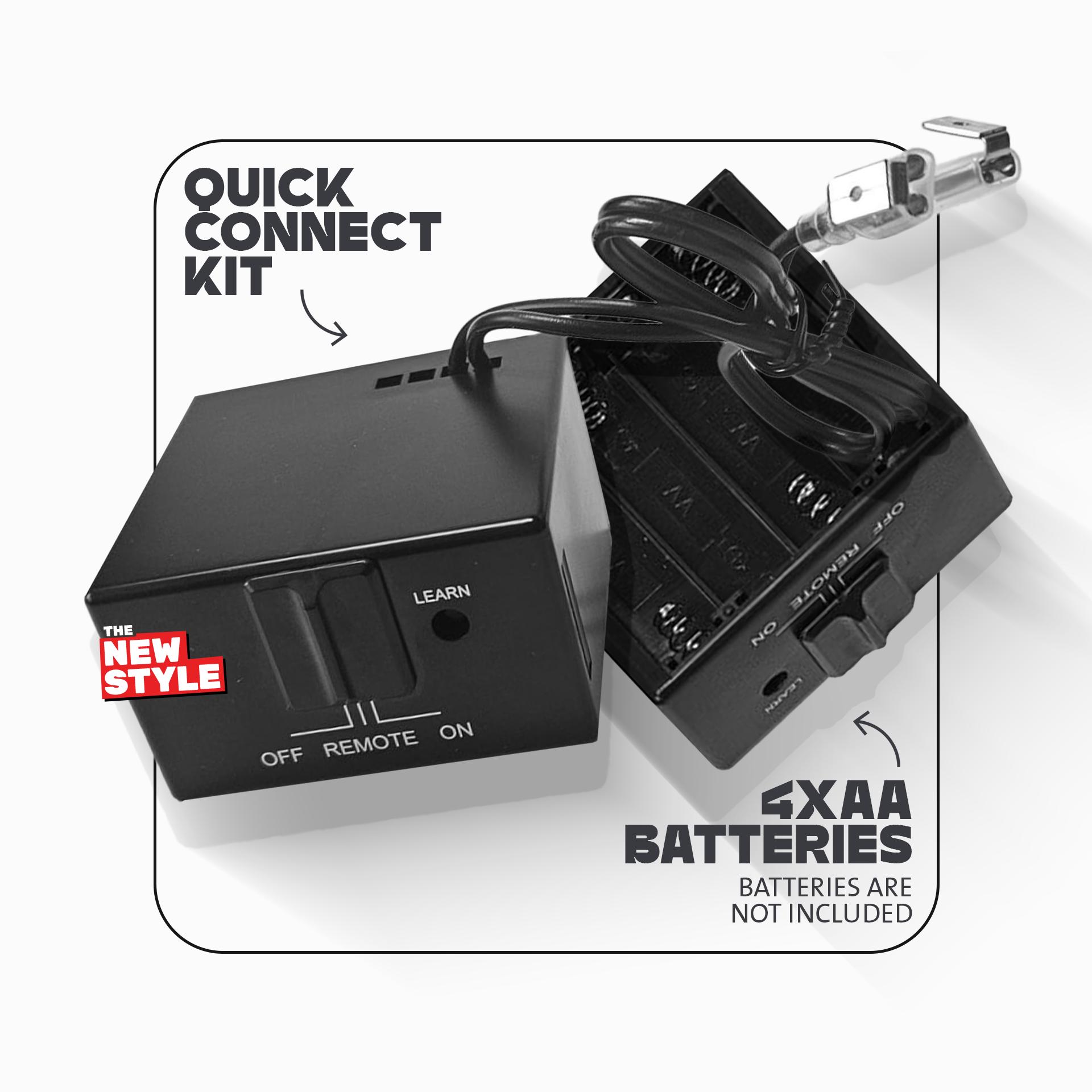

• Easy Access To The Receiver's Battery Compartment Uses a Sliding Battery Cover

• The Receiver Have a Learn Button

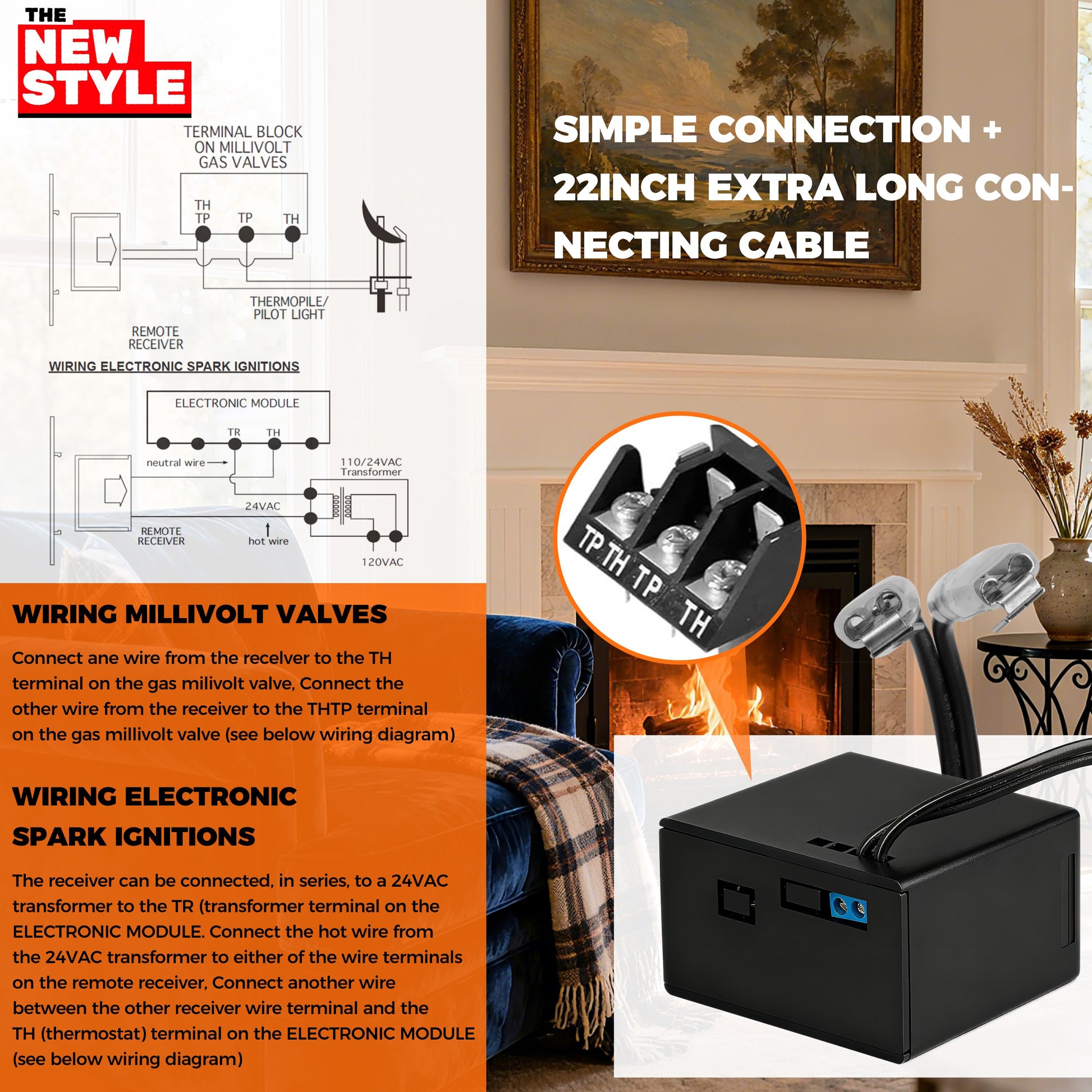

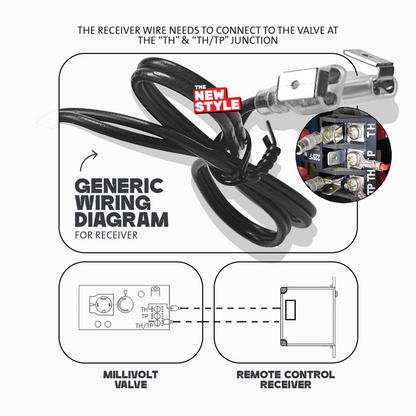

• Pre-Programmed For Quick Installation , Connect The Two Terminals To The (TH ) and( TH/TP) Terminals In The Millivolt Valve

• This Receiver Requires Four (4) “AA” Batteries (Batteries Not Included)

                                      LEARNING TRANSMITTER TO RECEIVER

-1-The transmitter privacy (DIP) Switches are preset at the factory. Setting the 4 bits DIP Switches on transmitter to select a security code.

-2- Put the receiver slide switch to “REMOTE” location. Using a small screwdriver or end of a paper clip gently press and hold the ‘LEARN ‘button on the receiver to accept the transmitter security code upon initial use, when you release the LEARN button the receiver will emit an audible 3 “beep” sounds.

-3- After the receiver emits 3 “beep” sounds. Press the transmitter “ON “or “OFF” button and release at once. The receiver will emit several beeps indicating that the transmitter’s code has been accepted into the receiver.

Note:( If matching failed from the the first attempt please repeat step 1-3 )
