Touch Screen Thermostatic Remote Control , for Millivolt Gas Fireplace System

Touch Screen Programmable Thermostat Remote Control Kit

• Touch screen remote control and receiver with AUTO Thermostat or manually Function for Millivolt valve system

• It can Direct replacement for Skytech - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves

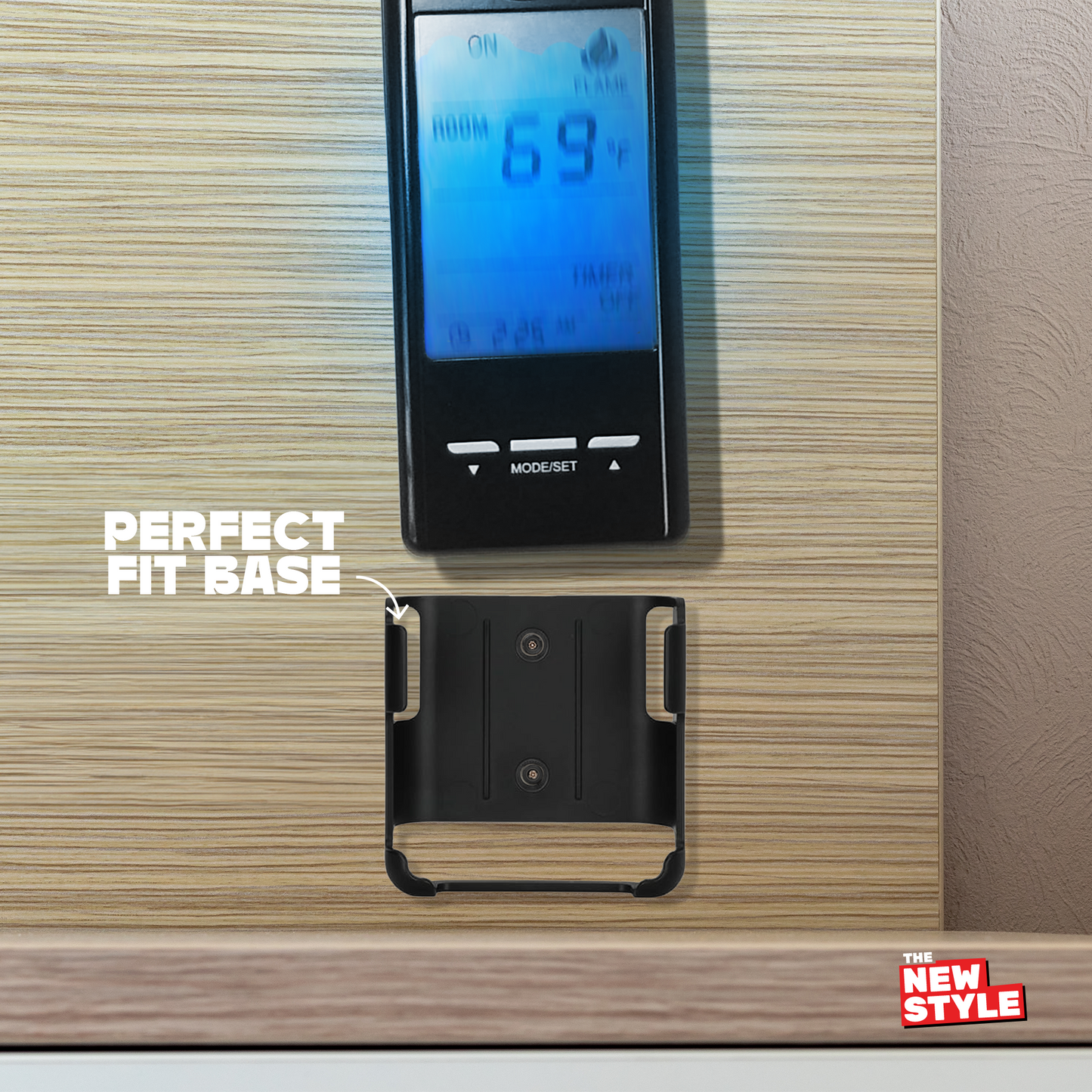

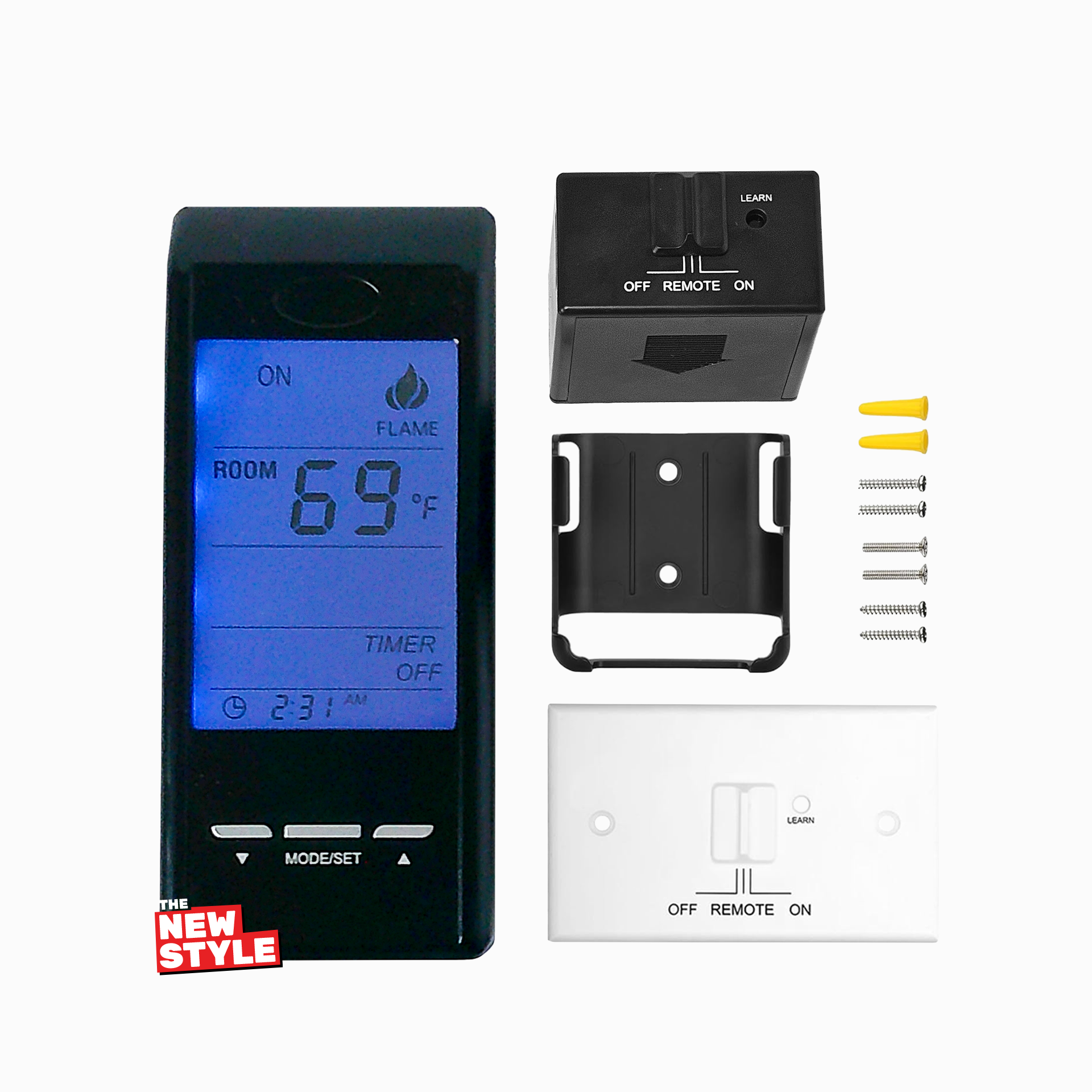

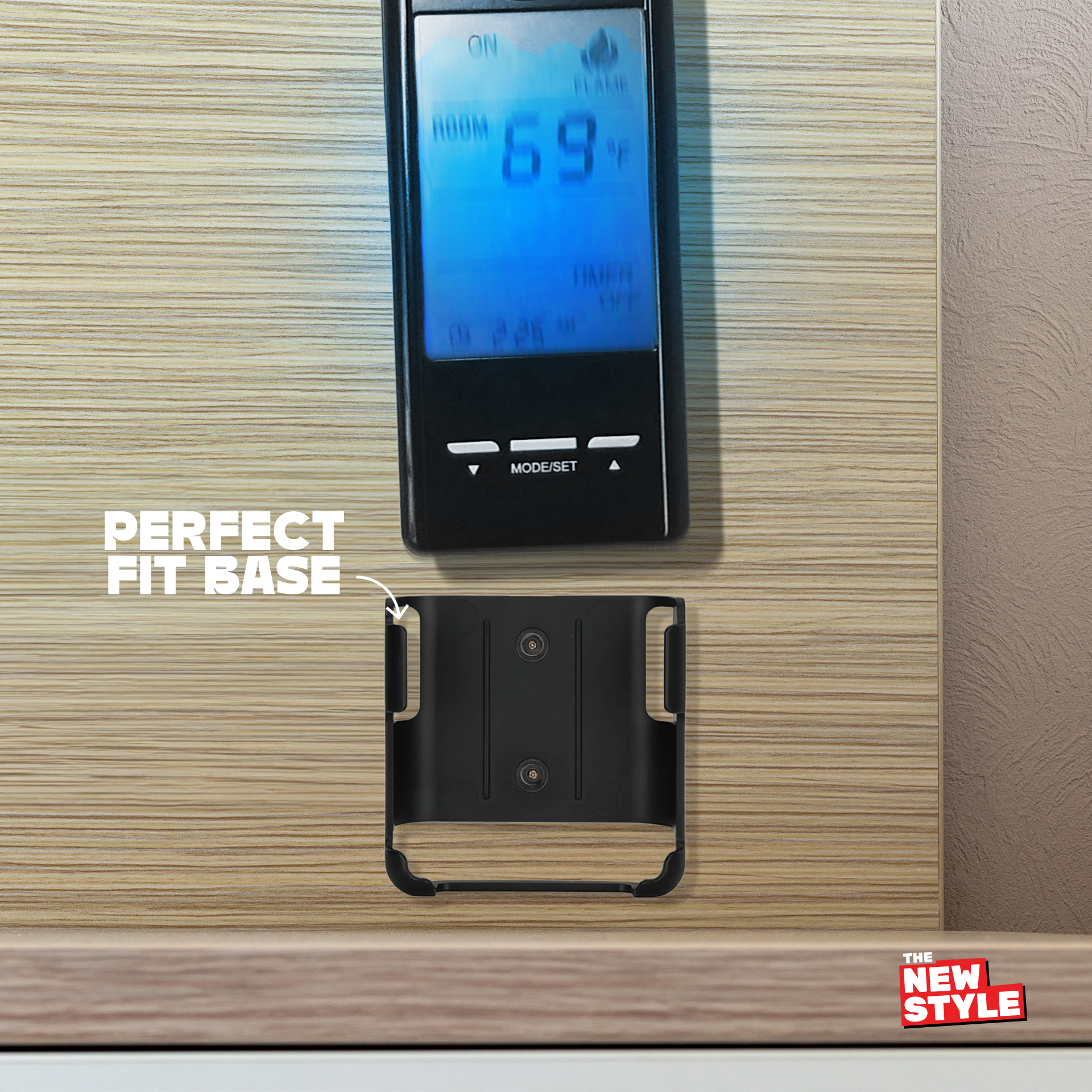

• Includes : Remote - Receiver - Wall plate - 18 inches wiring assembly - Plastic wall anchors for the transmitter - Screws

Attention: This Kit Does Not Work With Latching Solenoid Gas Valve Systems Please Read Your Fireplace Directions For Correct Application Before Purchase.

• This remote control system is designed for use with a millivolt or 24V gas valve system.

• This remote control system requires (4) “AAA” and (4) “AA” batteries to power the transmitter and receiver

Note : This Kit Does Not Include The Batteries

                                                                       ABOUT

Touch screen gas fireplace remote control thermostat has a blue backlight for better vision at night ,Remote allows you to turn your gas logs on/off or set the temperature you want , Receiver connects to any standard millivolt gas valve system

• Includes : Remote - Receiver - Wall plate - 18 inches wiring assembly - Plastic wall anchors for the transmitter - Screws

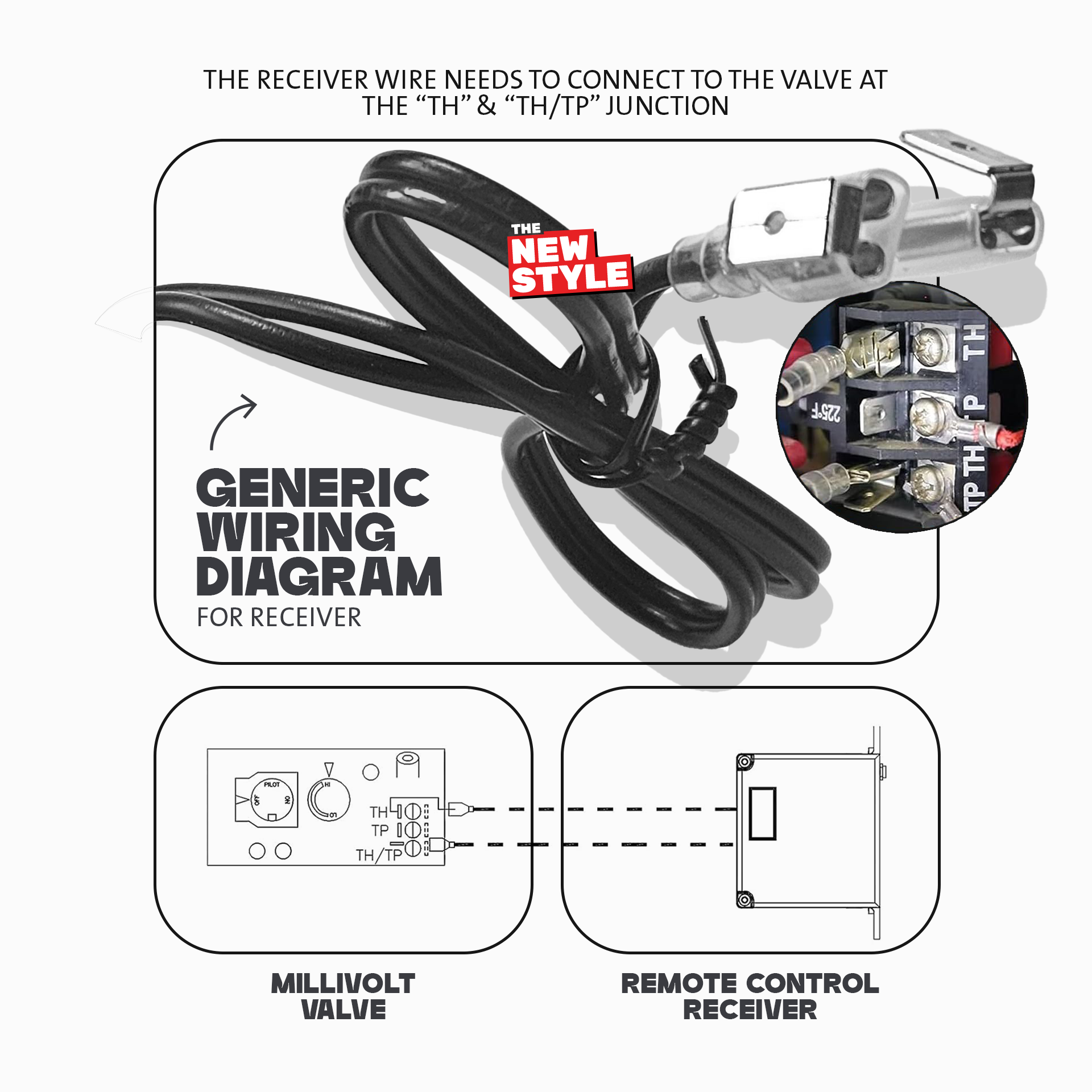

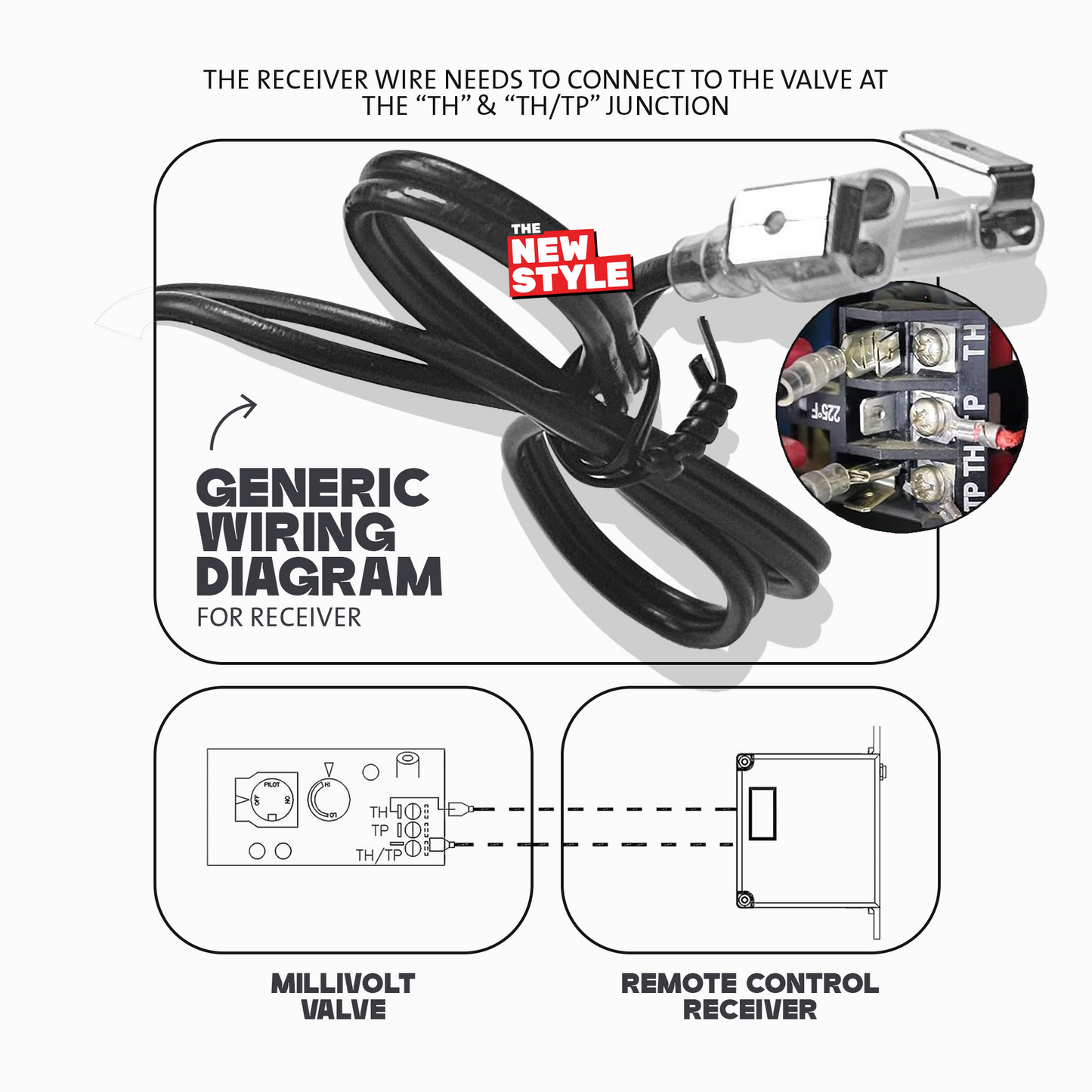

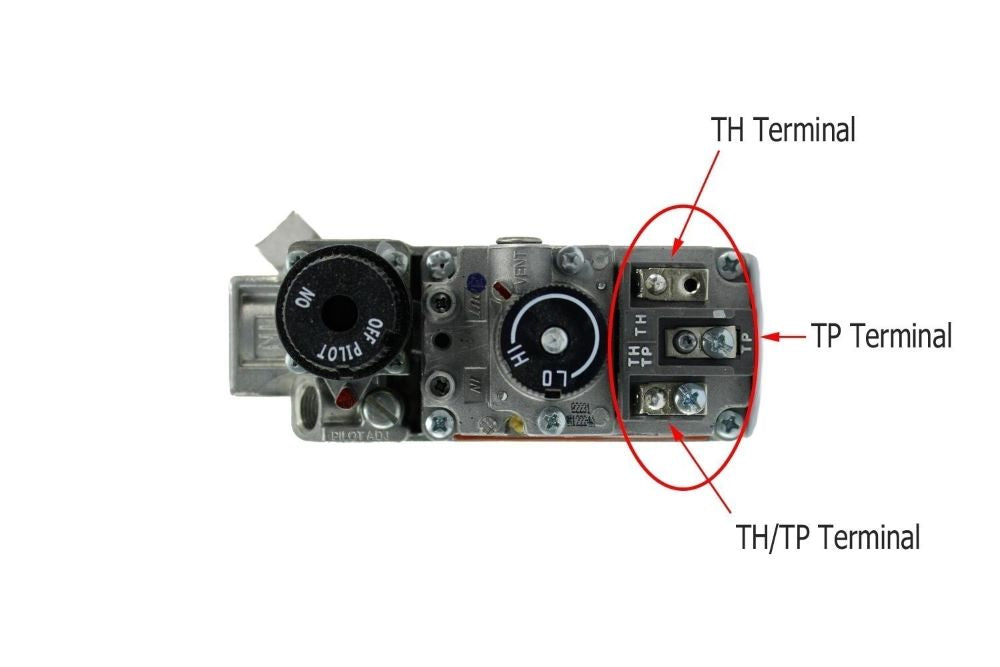

• Pre-programmed for quick Installation simply connect the two terminals to the TH and TH/TP terminals of the millivolt valve, install the batteries . After the connection is successful, the receiver will beep and thats it ready to use
• Direct replacement for SKYTECH - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves
• For any issue about this product we provide 1 year warranty on it
• For time clock settings , simply press and hold the clock section on the LCD screen for 3 seconds , the clock flag flashing indicates real time , press up or down to adjust the clock that you want .
• Settings F and C scale : Factory settings for temperature is F , to change into C , press and hold the UP button and the DOWN button on the trasmitter at the same time
• To activate the child - proof protection : Press the Mode/Set and UP buttons at the same time for 5 seconds , the lock icon will appear on the LCD screen , to deactivate the child - proof repeat the same procedure.

                                LEARNING TRANSMITTER TO RECEIVER

( Manufacture have done the default learning settings user can skip learning if not changed the dip switches)

-1-The transmitter privacy (DIP) Switches are preset at the factory. Setting the 4 bits DIP Switches on transmitter to select a security code. ( remote dip switches located on the side end of the remote)

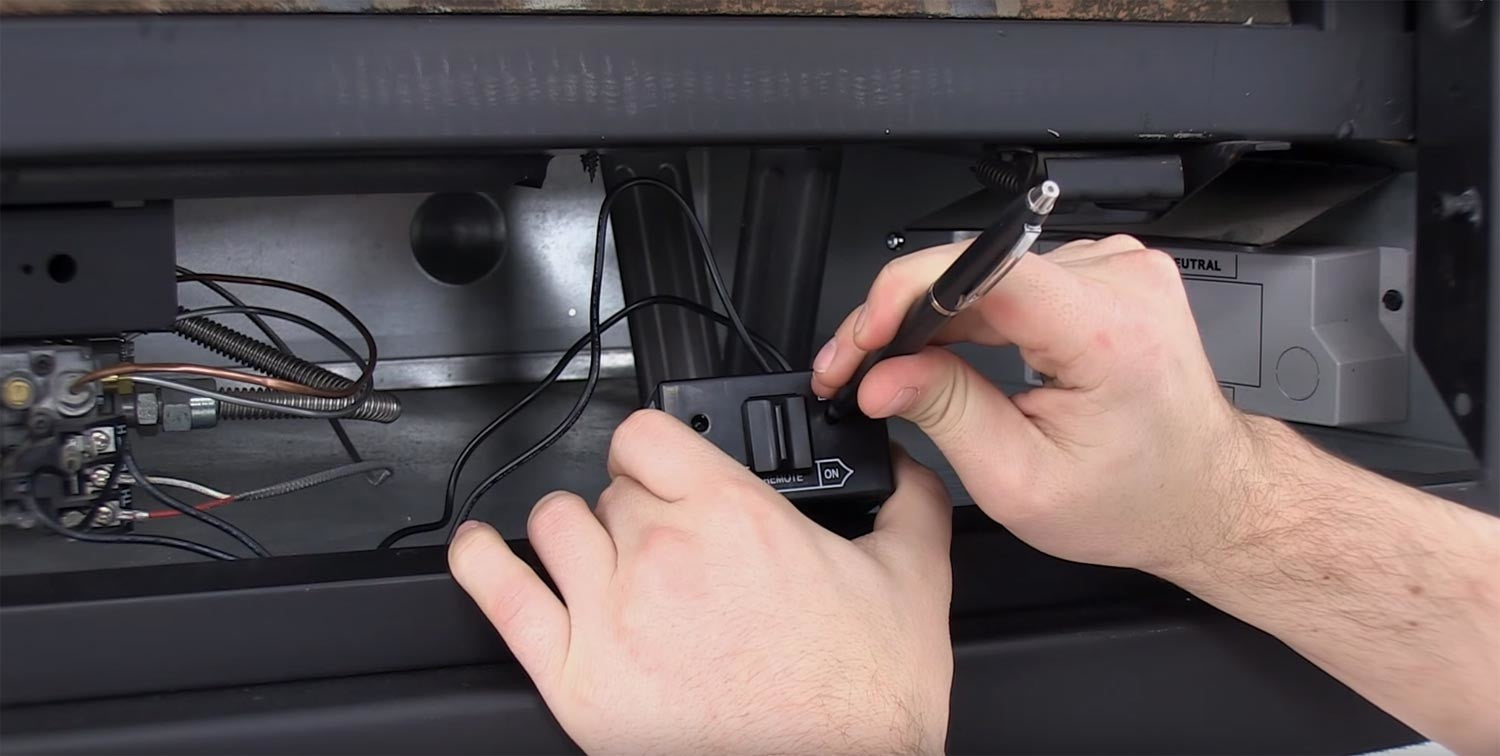

-2- Put the receiver slide switch to “REMOTE” location. Using a small screwdriver or end of a paper clip gently press and hold the ‘LEARN ‘button on the receiver to accept the transmitter security code upon initial use, when you release the LEARN button the receiver will emit an audible “beep” sounds.

-3- After the receiver emits the beep” sounds. Press the transmitter Mode/Set button or press (On thermos OFF ) button of touch screen . The receiver will emit several beeps indicating that the transmitter’s code has been accepted into the receiver.

Note: If matching failed from the the first attempt please repeat step 1-3

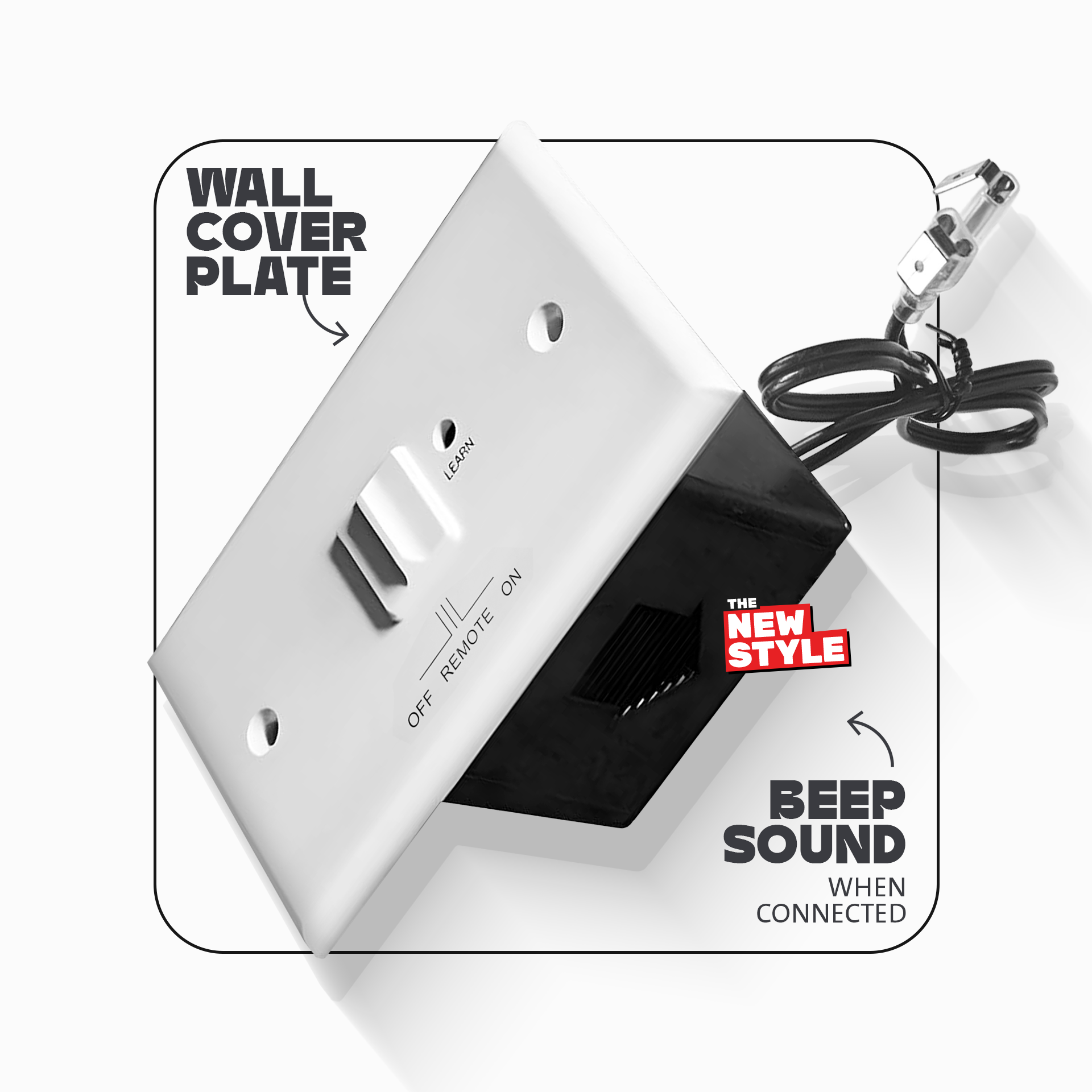

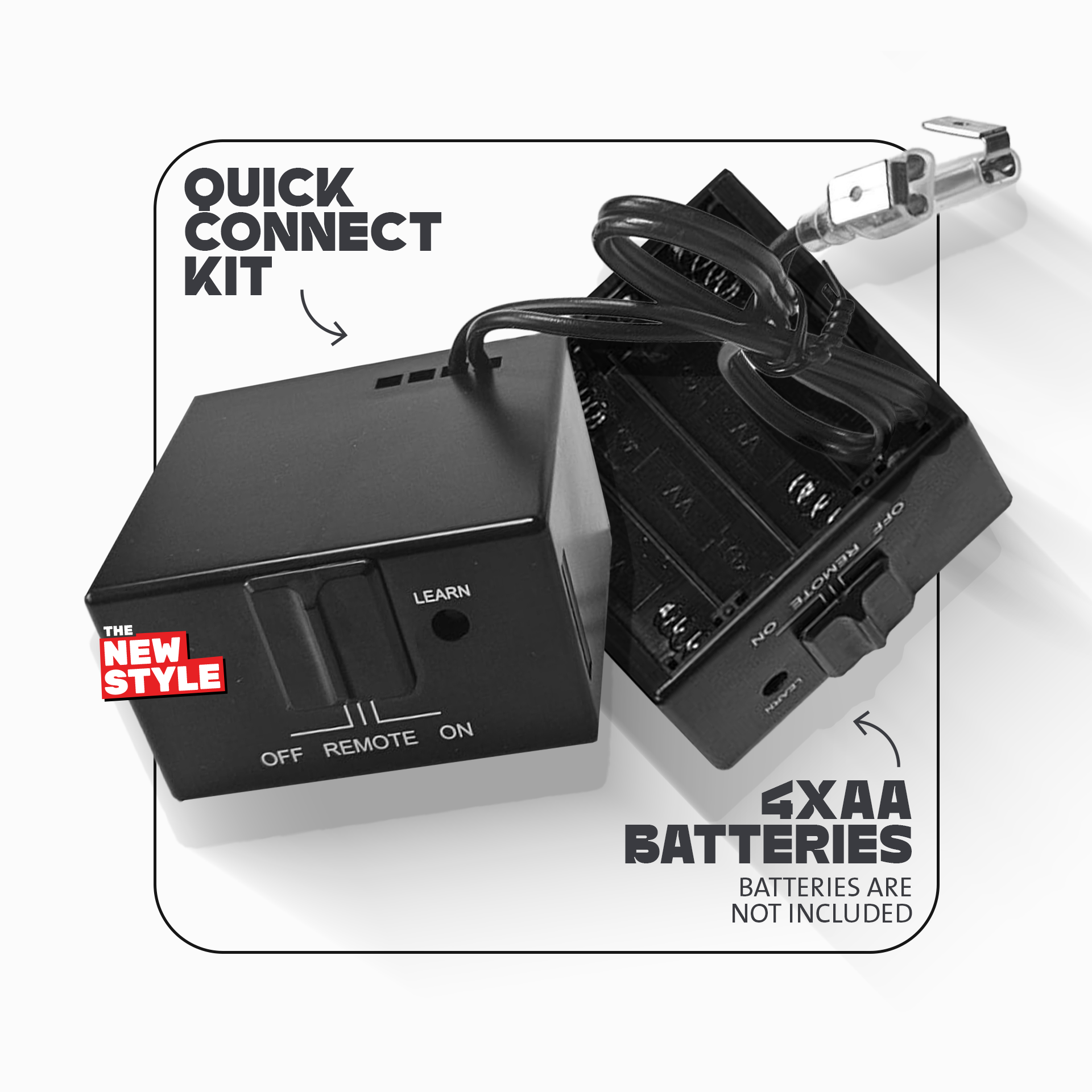

                                                           Receiver Overview

• Receiver Connects To Any Standard Millivolt Gas Valve System

• Easy Access To The Receiver's Battery Compartment Uses a Sliding Battery Cover

• The Receiver Have a Learn Button

• Pre-Programmed For Quick Installation , Connect The Two Terminals To The (TH ) and( TH/TP) Terminals In The Millivolt Valve

• This Receiver Requires Four (4) “AA” Batteries (Batteries Not Included)

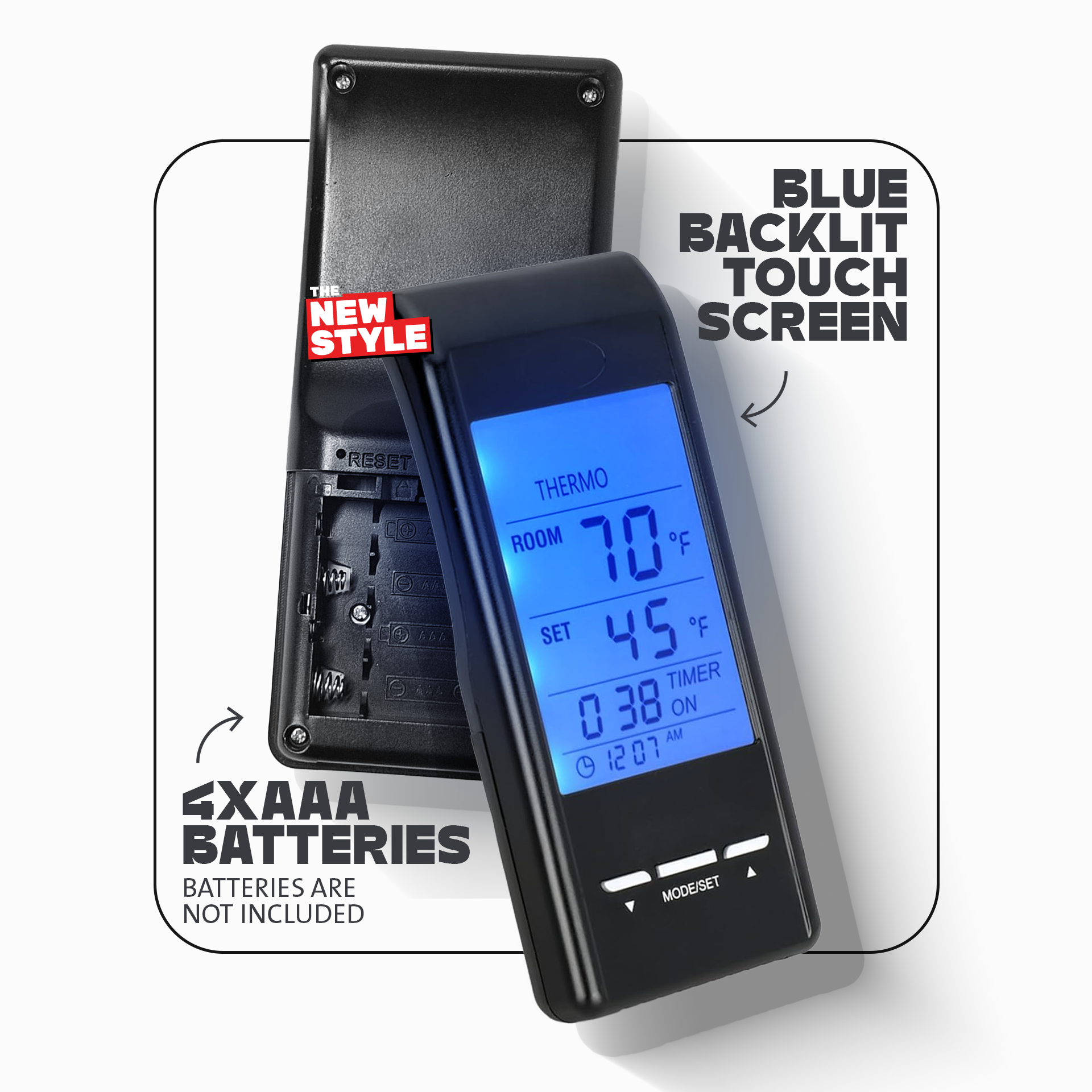

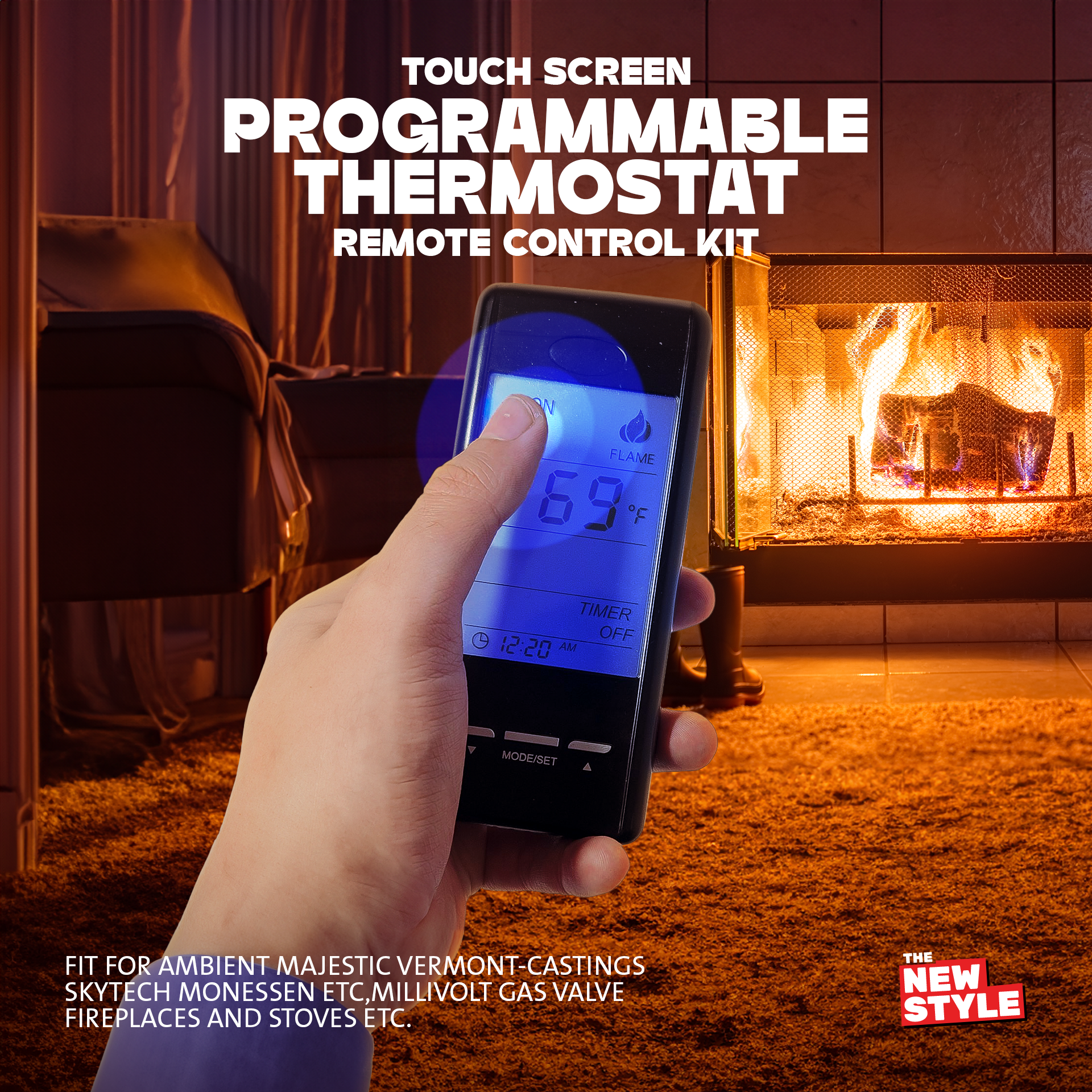

                                                         Remote Overview

•Touch screen gas fireplace remote control thermostat has a blue backlight for better vision at night ,Remote allows you to turn your gas logs on/off or set the temperature you want

• This Wireless Thermostatic on/off/ Remote Control System Provides a Safe, Reliable, and User Friendly Remote Control for Millivolt Valve Gas Appliances

• The System Can be Thermostatically or Manually Turned on And off With The Transmitter

• This Remote Control Requires Four(4) “AAA (batteries not included)

                                                          FEATURES

• Battery Powered Transmitter and Receiver

• Low battery Indication

• Child Proof Lock-out

• 16 Security Codes

• Quick Disconnect Wiring Assembly

• Touch key function

• Blue light on the screen for night vision

                                                                       General Information

• Always check the appliance home owner’s manual for additional information, or warnings regarding accessory installation before connecting this remote control system

• This remote control system is designed for use with a millivolt or 24V gas valve system.

• Do not use this remote control system on applications with voltages above 24 Volts AC/DC and 1 amp current.

• Do not short (or jumper) across the gas valve terminals to test the remote control installation.

NOTE : Due to sensitive temperature monitoring components in the transmitter , allow the transmitter 15 minutes to stabilize the room temperature before accurate room temperature are displayed

• Do not use 2 or more remote control systems in the same area with the same dip switch settings , as they will communicate with each other . This may cause the appliance to not work properly

• The user hand don’t close to temperature sensor location to avoid it influence the detect temperature of sensor
